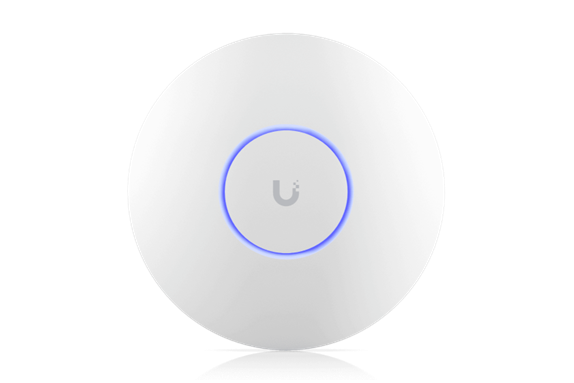

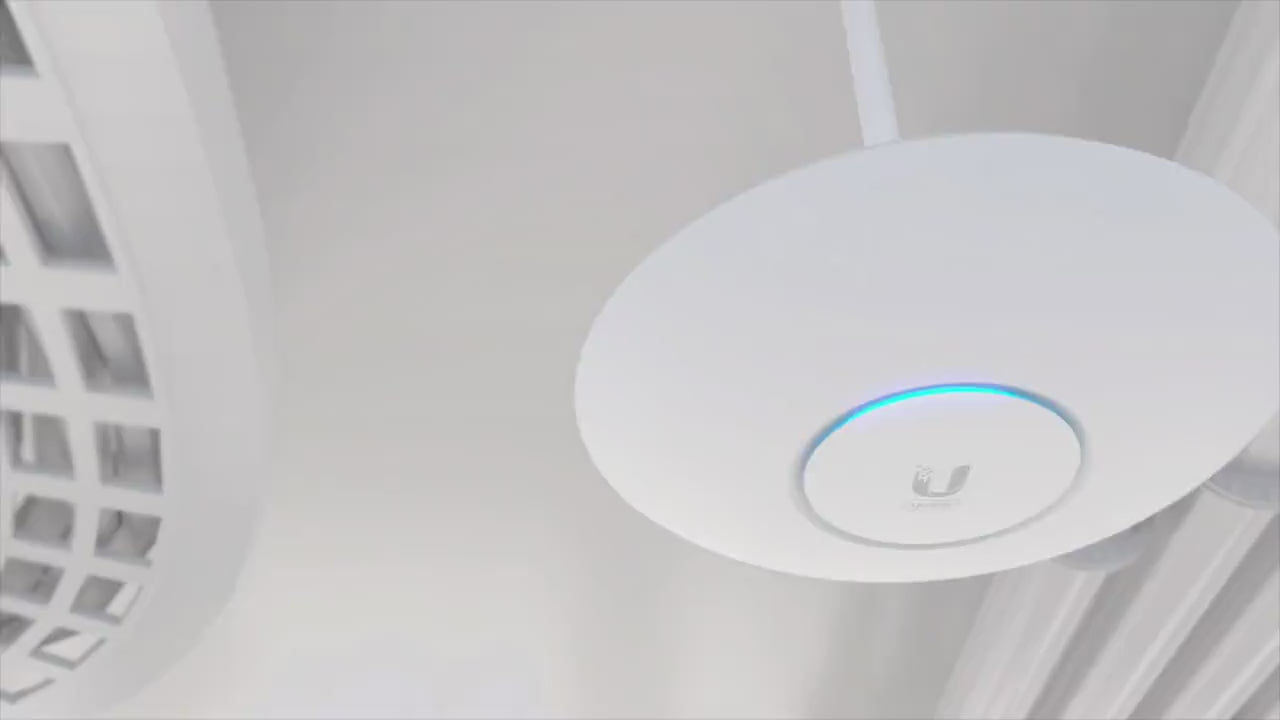

UniFi U6 Professional - Wi-Fi Access Point

140 m² (1,500 ft²) coverage

350+ connected devices

WiFi6 (4x4 MIMO)

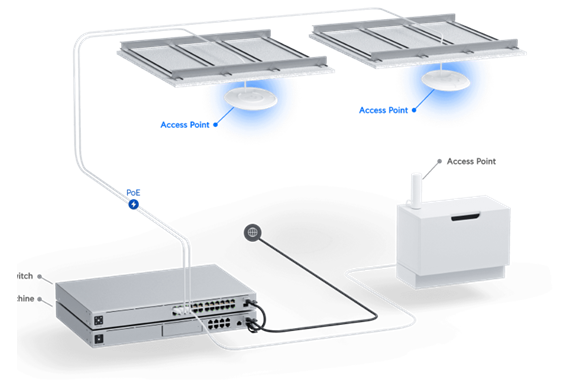

Powered using PoE

Mechanical

Dimensions:

• Ø197 x 35 mm (Ø7.76 x 1.38")

Weight:

• Without mount: 460 g (1.01 lb)
• With mount: 600 g (1.32 lb)

Enclosure material:

• Polycarbonate

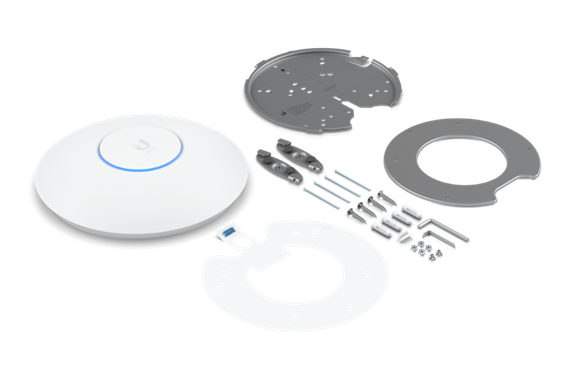

Mount material:

• Stainless steel (SUS304)

Weatherproofing:

• IP54

Hardware

Networking interface:

• (1) GbE RJ45 port

Management interface:

• Ethernet
• Bluetooth

Power method:

• PoE

Power supply:

• UniFi PoE switch48V, 0.5A PoE adapter (not included)

Supported voltage range:

• 44—57V DC

Max. power consumption:

• 13W

Max. TX power:

• 2.4 GHz: 22 dBm
• 5 GHz: 26 dBm

MIMO:

• 2.4 GHz: 2 x 2 (UL MU-MIMO)
• 5 GHz: 4 x 4 (DL/UL MU-MIMO)

Throughput rate:

• 2.4 GHz: 573.5 Mbps
• 5 GHz: 4.8 Gbps

Antenna gain:

• 2.4 GHz: 4 dBi
• 5 GHz: 6 dBi

LEDs:

• White/blue

Button:

• Factory reset

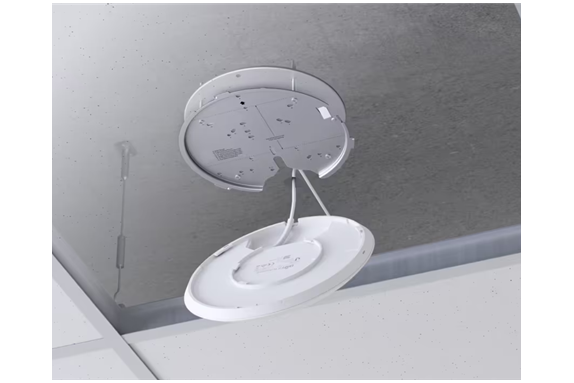

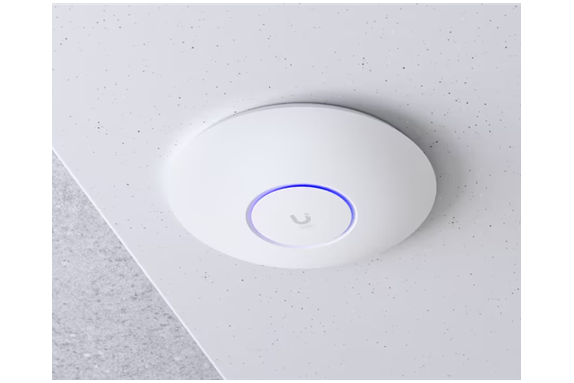

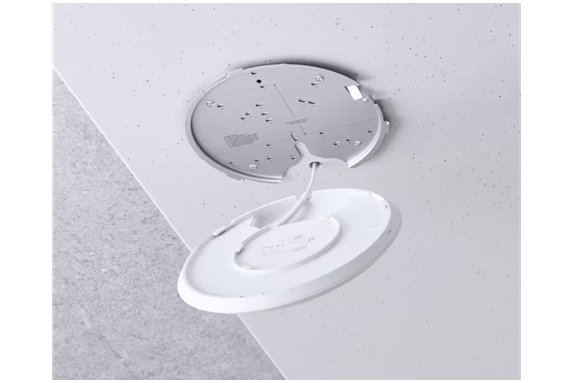

Mounting:

• Wall/ceiling (Included)

Operating temperature:

• -30 to 60° C (-22 to 140° F)

Operating humidity:

• 5 to 95% noncondensing

Certifications:

• CE, FCC, IC

Software

Wi-Fi standards:

• 802.11a/b/g
• Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless security:

• WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID:

• 8 per radio

VLAN:

• 802.1Q

Advanced QoS:

• Per-user rate limiting

Guest traffic isolation:

• Supported

Concurrent clients:

• 350+

Zero wait DFS:

• Yes

Supported Data Rates

802.11a:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b:

• 1, 2, 5.5, 11 Mbps

802.11g:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4):

• 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (Wi-Fi 5:)

• 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (Wi-Fi 6):

• 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network:

• Version 6.1.56 and later
