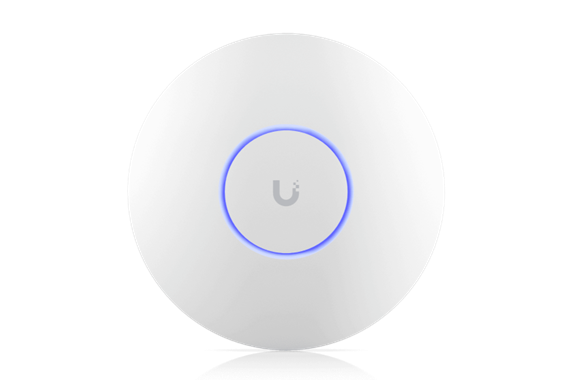

UniFi U6 Long-Range - Wi-Fi Access Point

Mechanical

Dimensions:

• Ø220 x 48 mm (Ø8.66 x 1.89")

Weight:

• Without mount: 800 g (1.76 lb)
• With mount: 930 g (2.05 lb)

Enclosure material:

• Polycarbonate

Mount material:

• Stainless steel (SUS304)

Weatherproofing:

• IP54

Hardware

Networking interface:

• (1) GbE RJ45 port

Management interface:

• Ethernet
• Bluetooth

Power method:

• PoE+, passive PoE (48V)

Power supply:

• UniFi PoE switch
• 48V, 0.5A PoE adapter (Not included)

Supported voltage range:

• 44—57V DC

Max. power consumption:

• 18.5W

Max. TX power:

• 2.4 GHz: 26 dBm
• 5 GHz: 26 dBm

MIMO:

• 2.4 GHz: 4 x 4
• 5 GHz: 4 x 4

Throughput rate:

• 2.4 GHz: 600 Mbps
• 5 GHz: 2400 Mbps

Antenna gain:

• 2.4 GHz: 4 dBi
• 5 GHz: 5.5 dBi

LEDs:

• White/blue

Button:

• Factory reset

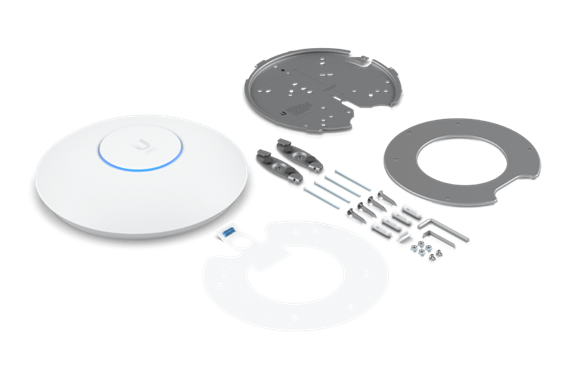

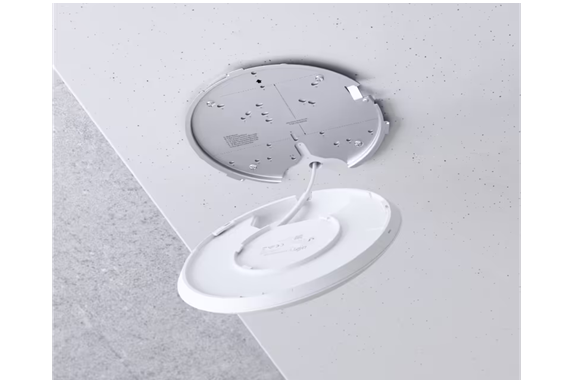

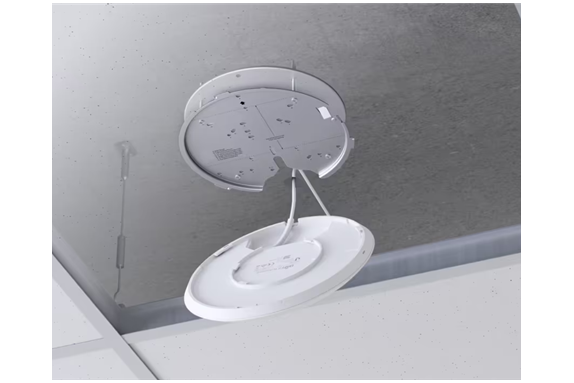

Mounting:

• Wall/ceiling (Included)

Operating temperature:

• -30 to 60° C (-22 to 140° F)

Operating humidity:

• 5 to 95% noncondensing

Certifications:

• CE, FCC, IC

Software

Wi-Fi standards:

• 802.11a/b/g
• Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless security:

• WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3

BSSID:

• 8 per radio

VLAN:

• 802.1Q

Advanced QoS:

• Per-user rate limiting

Guest traffic isolation:

• Supported

Concurrent clients:

• 350

Supported Data Rates

802.11a:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b:

• 1, 2, 5.5, 11 Mbps

802.11g:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4):

• 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (Wi-Fi 5):

• 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (Wi-Fi 6):

• 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network:

• Version 6.0.34 and later

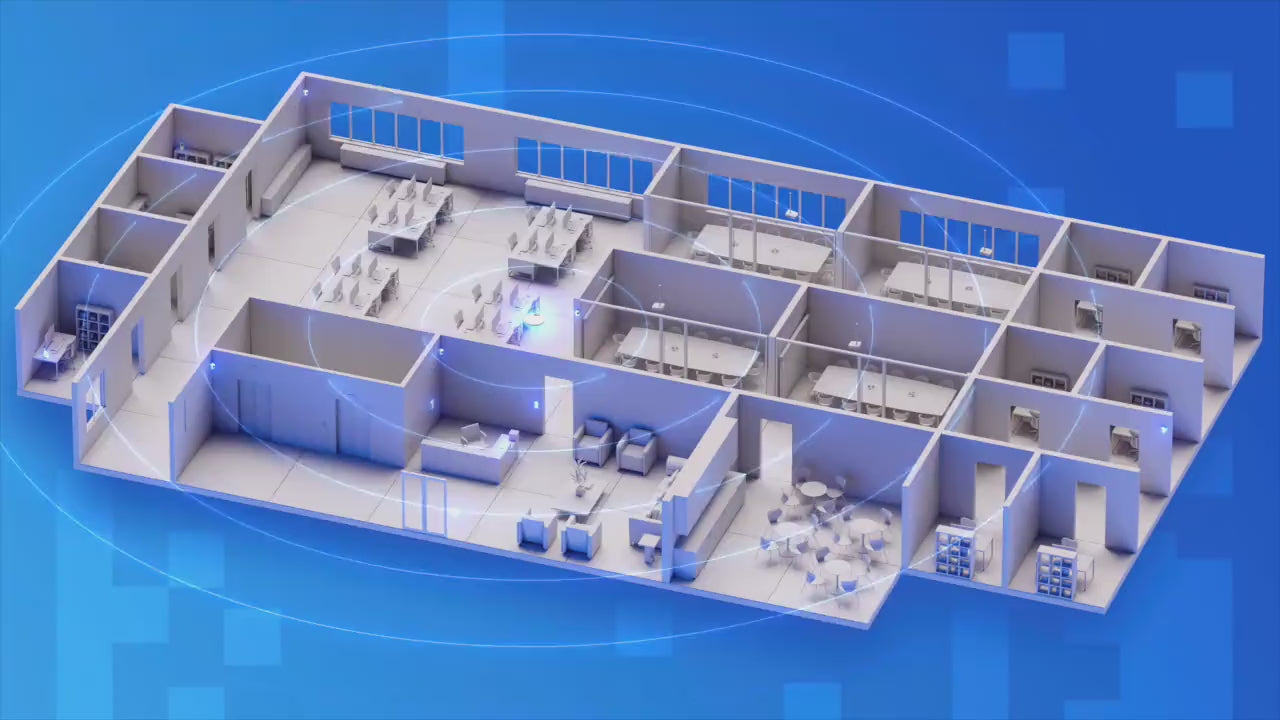

185 m² (2,000 ft²) coverage

350+ connected devices

WiFi6 (4x4 MIMO)

Powered using PoE+
