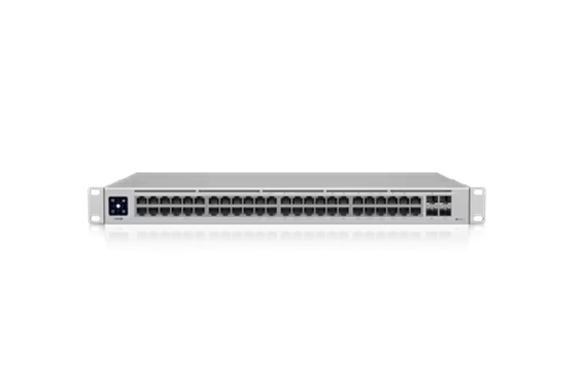

UniFi Enterprise 48 PoE Switch

Mechanical

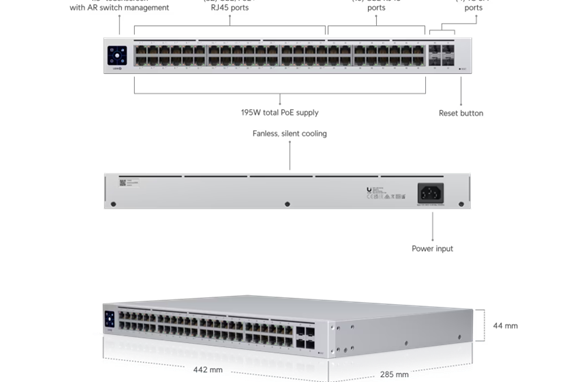

Dimensions:

• 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")

Weight:

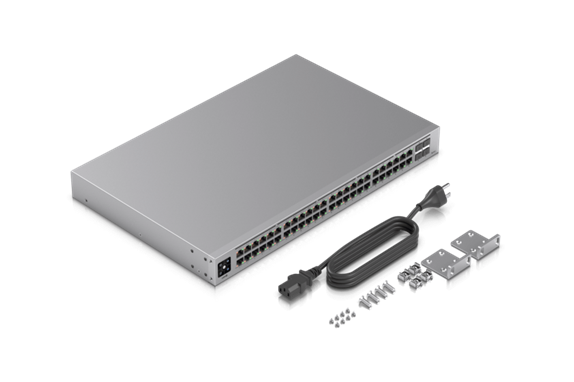

• Without mounting brackets: 6.2 kg (13.67 lb)With mounting brackets: 6.3 kg (13.89 lb)

Enclosure material:

• SGCC steel

Hardware

Management interface:

• Ethernet In-Band

Networking interface:

• (48) 2.5 GbE RJ45 ports
• (4) 1/10G SFP+ ports

PoE interface:

• (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput:

• 160 Gbps

Switching capacity:

• 320 Gbps

Forwarding rate:

• 238.095 Mpps

Power method:

• (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz
• (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A

Power supply:

• AC/DC, internal, 100—240V, 10A Max.

Supported voltage range:

• 100—240V AC

Max. power consumption:

• 150W (Excluding PoE output)

Total available PoE:

• 720W

Max. PoE wattage per port by PSE:

• PoE+: 34.2W

Voltage range PoE mode:

• PoE: 44—57V
• PoE+: 50—57V

Services:

• SMB Layer 3 PoE GbE Switch

ESD/EMP protection:

• Air: ± 16kV, contact: ± 12kV

LCM display:

• (1) 1.3" color touchscreen

Button:

• Factory reset

Operating temperature:

• -5 to 40° C (23 to 104° F)

Operating humidity:

• 10 to 90% noncondensing

Certifications:

• CE, FCC, IC

LEDs

System:

• Status

Ethernet:

• Link/activity

SFP+:

• Link/activity

Application Requirements

UniFi Network:

• Version 6.2.26 and later

(48) 2.5 GbE PoE+ ports

(4) 10G SFP+ ports

720W total PoE availability

DC power backup-ready

Layer 3 switching
