UniFi Dream wall

Mechanical

Dimensions:

• 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")

Weight:

• 8.6 kg (19 lb)

Enclosure materials:

• Polycarbonate, galvanized steel, aluminum alloy

Mount material:

• Stainless steel

Hardware

Processor:

• Quad-core ARM® Cortex®-A57 at 1.7 GHz

System memory:

• 4 GB DDR4

On-board storage:

• 16 GB eMMC
• Integrated 128 GB SSD
• Pre-installed 512 GB microSD card

Expansion slot:

• Micro SD memory card*

*Requires a memory card with at least 128 GB of storage

Management interface:

• Ethernet
• Bluetooth
• Wi-Fi

Networking interface:

• (17) LAN: GbE RJ45 ports
• (1) WAN: 2.5 GbE RJ45 port

SFP+ interface:

• (1) LAN: 10G SFP+ port
• (1) WAN: 10G SFP+ port

PoE interface:

• (4) PoE (Pair A 1, 2+; 3, 6-)
• (4) PoE+ (Pair A 1, 2+; 3, 6-)
• (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Power method:

• Universal AC input 100—240V AC, 7A Max., 50/60Hz

Power supply:

• (2) Hot-Swappable AC/DC 550W PSU*

*Comes with (1) pre-installed PSU

Max. power consumption:

• 532W

Max. PoE wattage per port by PSE:

• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W

Voltage range PoE mode:

• PoE: 44—57V
• PoE+/PoE++: 50—57V

Max. TX power:

• 2.4 GHz: 23 dBm
• 5 GHz: 26 dBm

MIMO:

• 2.4 GHz: 2 X 2
• 5 GHz: 4 X 4

Throughput rate:

• 2.4 GHz: 300 Mbps
• 5 GHz: 2.4 Gbps

Antenna gain:

• 2.4 GHz: 5.9 dBi
• 5 GHz: 6 dBi

ESD/EMP protection:

• Air: ± 8kV, contact: ± 4kV

LCM display:

• (1) 4.7" touchscreen

Button:

• Factory reset

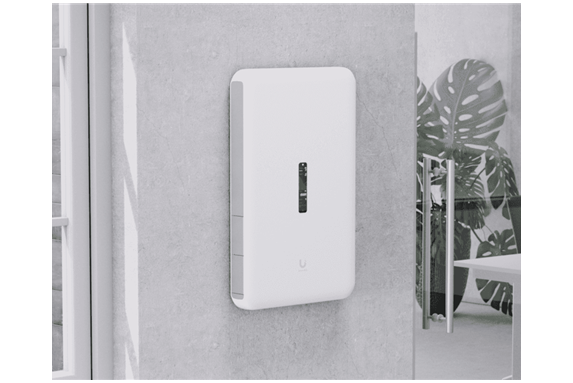

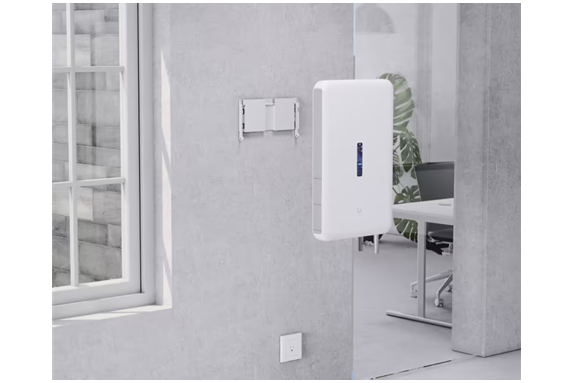

Mounting

• Wall mount (included)

Operating temperature:

• -10 to 40° C (14 to 104° F)

Operating humidity:

• 5 to 95% noncondensing

Certifications:

• CE, FCC, IC

Gateway Features

Performance:

• Redundant WAN with failover and load balancing
  WiFi QoS with UniFi APs
  Application, domain, and country-based QoS
  Application and device type identification
  Additional internet failover with LTE Backup
  Internet quality and outage reporting

Next-generation security:

• Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall

Advanced networking:

• License-free SD-WAN
  WireGuard, L2TP and OpenVPN server
  OpenVPN client
  OpenVPN and IPsec site-to-site VPN
  One-click Teleport and UID VPN
  Policy-based WAN and VPN routing
  DHCP relay
  Customizable DHCP server
  IGMP proxy
  IPv6 ISP support

Software

Wi-Fi standards:

• 802.11a/b/g
• Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless security:

• WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID:

• 8 per radio

VLAN:

• 802.1Q

Advanced QoS:

• Per-user rate limiting

Guest traffic isolation:

• Supported

Concurrent clients:

• 300+

LEDs

Ethernet:

• White: link/activity

SFP+:

• White: link/activity

PSU:

• Blue: ready
• Amber: failure

Supported Data Rates

802.11a:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b:

• 1, 2, 5.5, 11 Mbps

802.11g:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4):

• 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (Wi-Fi 5):

• 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (Wi-Fi 6):

• 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Integrated Enterprise WiFi6 (4x4 MIMO)

Full UniFi OS and UniFi application support

3.5+ Gbps routing

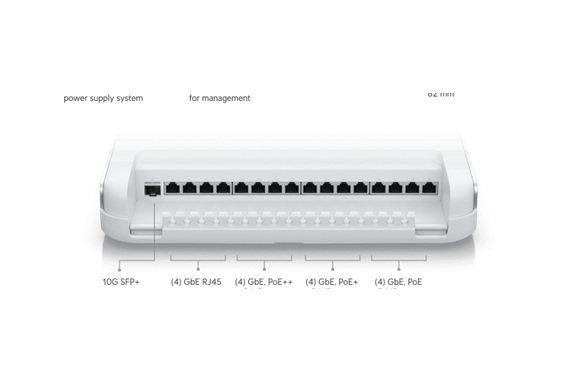

(1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports

(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports

4.7" touchscreen for management

Integrated 128 GB SSD & pre-installed 512 GB microSD card
