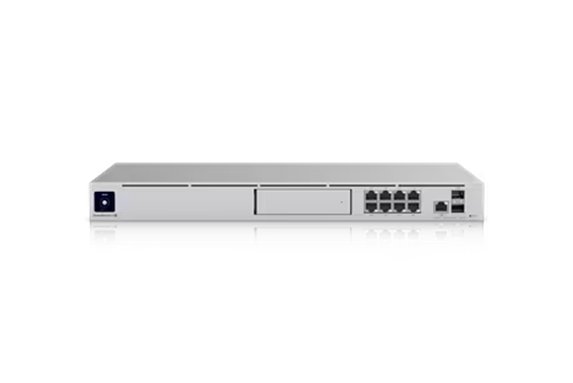

UniFi Dream Machine Special Edition

Mechanical

Dimensions:

• 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

Weight:

• 4.95 kg (10.9 lb)

Enclosure materials:

• Aluminium CNC, SGCC steel

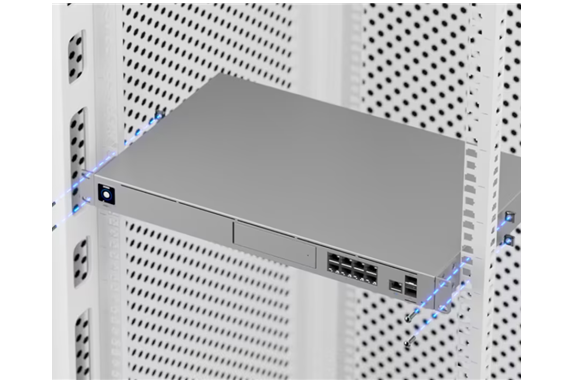

Mount material:

• SGCC steel

Hardware

Processor:

• Quad-core ARM® Cortex®-A57 at 1.7 GHz

System memory:

• 4 GB DDR4

On-board storage:

• 16 GB eMMC
• Integrated 128 GB SSD

Management interface:

• Ethernet
• Bluetooth

Networking interface:

• (8) LAN: GbE RJ45 ports
• (1) WAN: 2.5 GbE RJ45 port

SFP+ interface:

• (1) LAN: 10G SFP+
• (1) WAN: 10G SFP+

PoE interface:

• (6) PoE (Pair A 1, 2+; 3, 6-)
• (2) PoE+ (Pair A 1, 2+; 3, 6-)

IDS/IPS throughput:

• 3.5Gbps

Power method:

• (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
• (1) USP-RPS DC input, 52V DC, 3.94A

Power supply:

• AC/DC, internal, 240W

Supported voltage range:

• 100—240V AC

Max. power consumption:

• 50W (Excluding PoE output)

Voltage range PoE mode:

• PoE: 44—57V
• PoE+: 50—57V

ESD/EMP protection:

• Air: ± 15kV, contact: ± 8kV

LCM display:

• (1) 1.3" touchscreen

Button:

• Factory reset

Operating temperature:

• -10 to 40° C (14 to 104° F)

Operating humidity:

• 5 to 95% noncondensing

Certifications:

• CE, FCC, IC

Gateway Features

Performance:

• Redundant WAN with failover and load balancing Wi-Fi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reporting

Next-generation security:

• Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall

Advanced networking

• License-free SD-WAN
  WireGuard, L2TP and OpenVPN server
  OpenVPN client
  OpenVPN and IPsec site-to-site VPN
  One-click Teleport and UID VPN
  Policy-based WAN and VPN routing
  DHCP relay
  Customizable DHCP server
  IGMP proxy
  IPv6 ISP support

LEDs

Ethernet:

• White: link/activity

SFP+:

• White: link/activity

HDD:

• White: disk activity
• Amber: disk error

RPS:

• Blue: ready

Includes full UniFi application suite for device management

3.5+ Gbps routing

Integrated 8-port PoE/PoE+ switch

(1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE

(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports

1.3" touchscreen

128 GB SSD & 3.5" HDD bay
