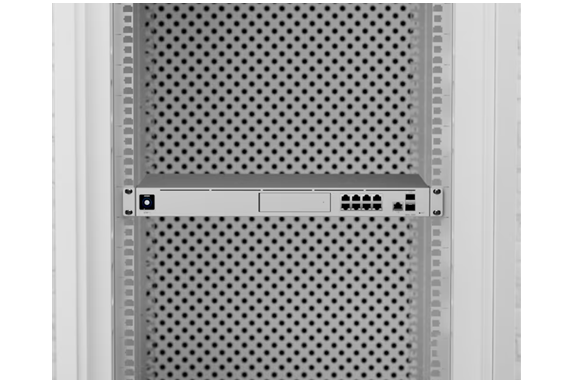

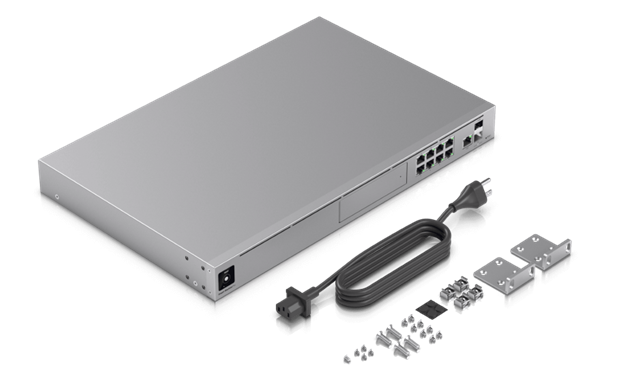

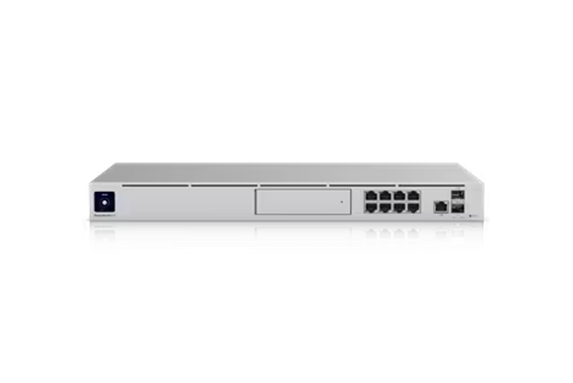

UniFi Dream Machine Professional

Includes full UniFi application suite for device management

3.5+ Gbps routing

(1) 10G SFP+, (8) GbE RJ45 LAN ports

(1) 10G SFP+, (1) GbE RJ45 WAN ports

1.3" touchscreen

3.5" HDD bay

Mechanical

Dimensions:

• 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

Weight:

• 3.9 kg (8.6 lb)

Enclosure materials:

• Aluminium CNC, SGCC steel

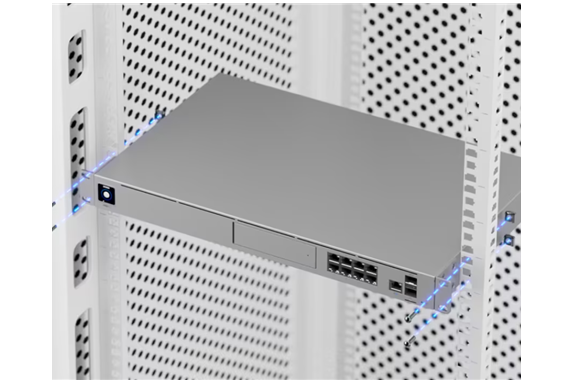

Mount material:

• SGCC steel

Hardware

Processor:

• Quad-core ARM® Cortex®-A57 at 1.7 GHz

System memory:

• 4 GB DDR4

On-board storage:

• 16 GB eMMC

Management interface:

• Ethernet
• Bluetooth

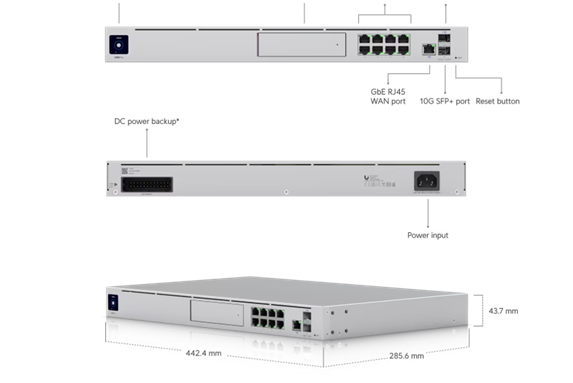

Networking interface:

• (8) LAN: GbE RJ45 ports
• (1) WAN: GbE RJ45 port

SFP+ interface:

• (1) LAN: 10G SFP+
• (1) WAN: 10G SFP+

IDS/IPS throughput:

• 3.5Gbps

Power method:

• (1) Universal AC Input, 100—240V AC, 50/60 Hz
• (1) USP-RPS DC input

Power supply:

• AC/DC, internal, 50W

Supported voltage range:

• 100—240V AC

Max. power consumption:

• 33W

ESD/EMP protection:

• Air: ± 15kV, contact: ± 8kV

LCM display:

• (1) 1.3" touchscreen

Button:

• Factory reset

Operating temperature:

• -10° to 40° C (14° to 104° F)

Operating humidity:

• 5 to 95% noncondensing

Certifications:

• CE, FCC, IC

Gateway Features

Performance:

• Redundant WAN with failover and load balancingWiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reporting

Next-generation security:

• Application-aware firewall rules
  Signature-based IPS/IDS threat detection
  Content, country, domain, and ad filtering
  VLAN/subnet-based traffic segmentation
  Full stateful firewall

Advanced networking

• License-free SD-WAN
  WireGuard, L2TP and OpenVPN server
  OpenVPN client
  OpenVPN and IPsec site-to-site VPN
  One-click Teleport and UID VPN
  Policy-based WAN and VPN routing
  DHCP relay
  Customizable DHCP server
  IGMP proxy
  IPv6 ISP support

LEDs

Ethernet:

• Link/activity
• Green: 1G
• Amber: 10/100M

SFP+:

• Link/activity
• White: 10G
• Green: 1G

HDD:

• White: disk activity
• Amber: disk error

RPS:

• Blue: ready
