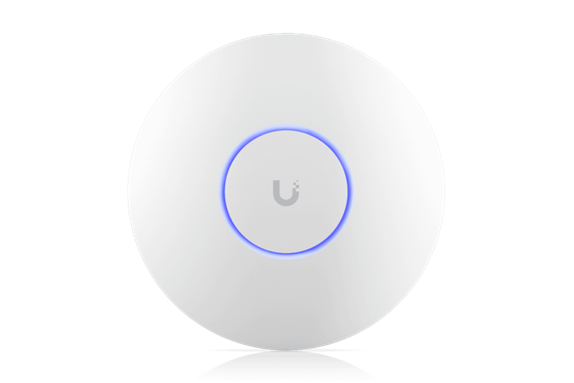

UniFi AC Lite- Wi-Fi Access Point

Mechanical

Dimensions:

• Ø160 x 31.45 mm (Ø6.3 x 1.2")

Weight:

• Without mount: 170 g (6 oz)
• With mount: 185 g (6.5 oz)

Hardware

Networking interface:

• (1) GbE RJ45 port

Management interface:

• Ethernet

Power method:

• PoE
• 24V Passive PoE (Pairs 4, 5+; 7, 8 return)

Power supply:

• UniFi PoE switch
• 24V, 0.5A Gigabit PoE adapter*

Max. power consumption:

• 6.5W

Max.TX power:

• 2.4 GHz: 20 dBm
• 5 GHz: 20 dBm

MIMO:

• 2.4 GHz: 2 x 2
• 5 GHz: 2 x 2

Throughput rate:

• 2.4 GHz: 300 Mbps
• 5 GHz: 867 Mbps

Antenna gain:

• 2.4 GHz: 3 dBi
• 5 GHz: 3 dBi

Button:

• Factory reset

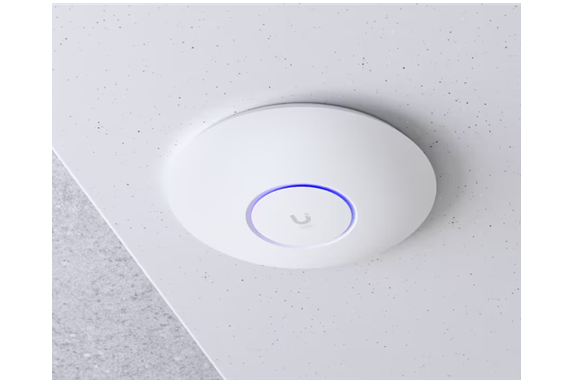

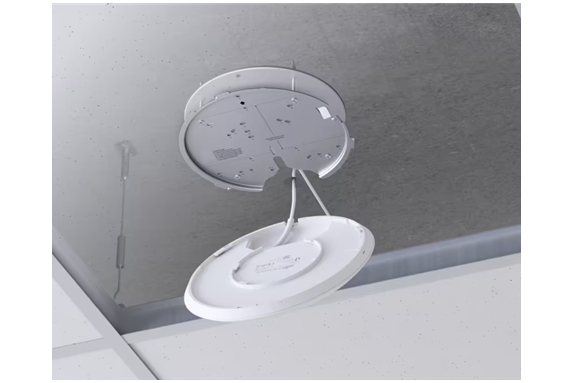

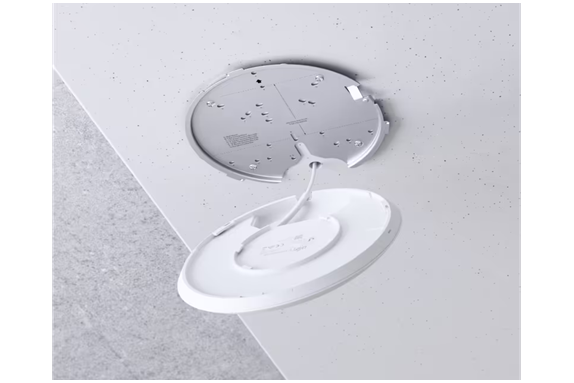

Mounting:

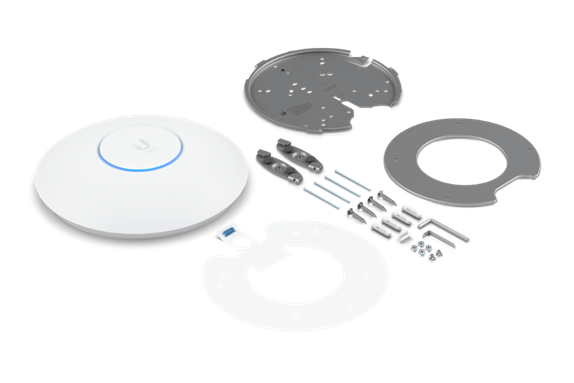

• Wall/ceiling (Included)

Operating temperature:

• -10 to 70° C (14 to 158° F)

Operating humidity:

• 5 to 95% noncondensing

Certifications:

• CE, FCC, IC

Software

Wi-Fi standards:

• 802.11 a/b/g/n/r/k/v/ac

Wireless security:

• WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID:

• Up to 8 per radio

VLAN

• 802.1Q

Advanced QoS:

• Per-user rate limiting

Guest traffic isolation:

• Supported

Power save:

• Supported

WMM:

• Voice, video, best effort, and background

Concurrent clients:

• 250+

Supported Data Rates (Mbps)

802.11a:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b:

• 1, 2, 5.5, 11 Mbps

802.11g:

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n:

• 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac:

• 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

115 m² (1,250 ft²) coverage

250+ connected devices

Wi-Fi 5 (2x2 MIMO)

Powered using PoE*
