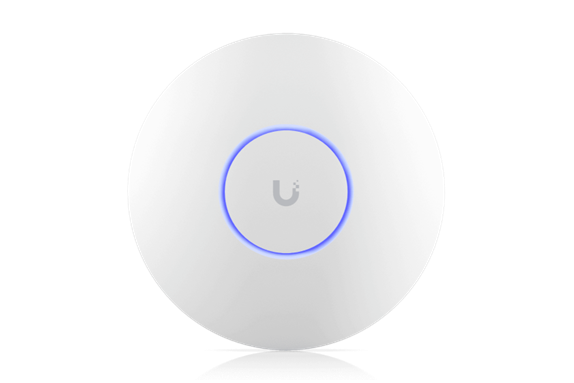

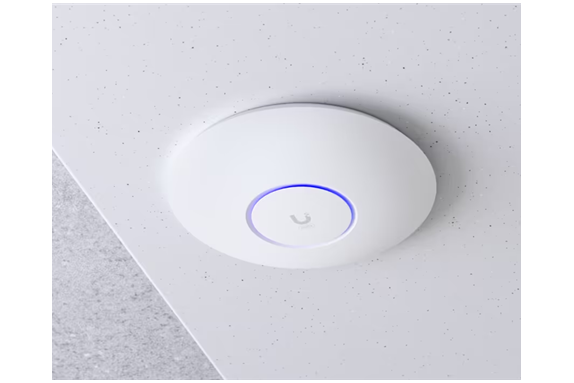

UniFi AC Long Range - Wi-Fi Access Point

UniFi AC Long Range - Wi-Fi Access Point

SKU:

SKU:00329 - P/N: UAP-AC-LR

Regular price $149.00
Regular price Sale price $149.00
Sale Sold out

Out of stock

Description

Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput rate.

Features

185 m² (2,000 ft²) coverage

250+ connected devices

WiFi 5 (3x3 MIMO)

Powered using PoE*

Tech Specifications

Mechanical

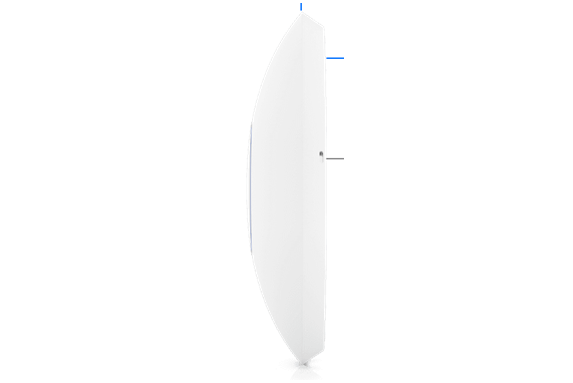

Dimensions:

  • Ø175.7 x 43.2 mm (Ø6.9 x 1.7")

Weight:

  • Without mount: 240 g (8.5 oz
  • )With mount: 315 g (11.1 oz)

Hardware

Networking interface:

  • (1) GbE port

Management interface:

  • Ethernet

Power method:

  • PoE
  • 24V passive PoE (Pairs 4, 5+; 7, 8 return)

Power supply:

  • UniFi PoE switch
  • 24V, 0.5A Gigabit PoE adapter*

Max. power consumption:

6.5W

Max.TX power:

  • 2 GHz:: 24 dBm
  • 5 GHz: 22 dBm

MIMO:

  • 2.4 GHz: 3 x 3
  • 5 GHz: 2 x 2

Throughput rate:

  • 2.4 GHz: 450 Mbps
  • 5 GHz: 867 Mbps

Antenna gain:

  • 2.4 GHz: 3 dBi
  • 5 GHz: 3 dBi

Button:

  • Factory reset

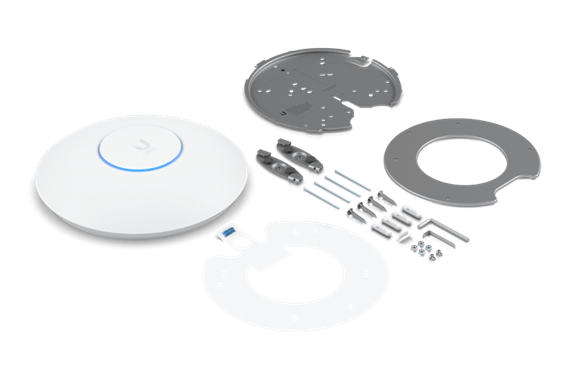

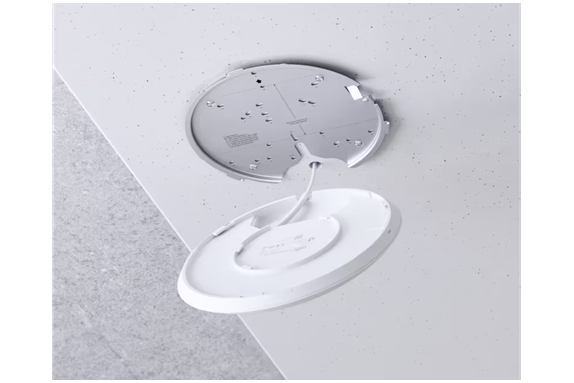

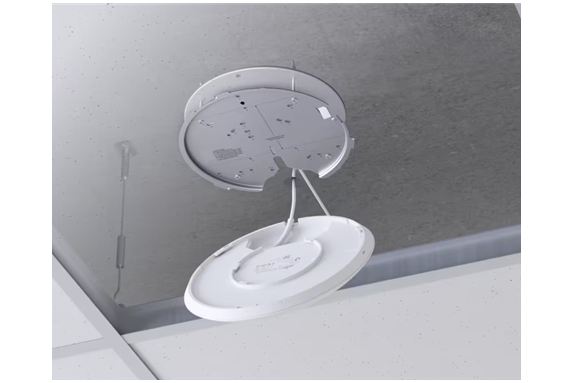

Mounting:

  • Wall/ceiling (Included)

Operating temperature:

  • -10 to 70° C (14 to 158° F)

Operating humidity:

  • 5 to 95% noncondensing

Certifications:

  • CE, FCC, IC

Software

Wi-Fi standards:

  • 802.11 a/b/g/n/r/k/v/ac

Wireless security:

  • WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID:

  • Up to 8 per radio

VLAN

  • 802.1Q

Advanced QoS:

  • Per-user rate limiting

Guest traffic isolation:

  • Supported

Power save:

  • Supported

WMM:

  • Voice, video, best effort, and background

Concurrent clients:

  • 250+

Supported Data Rates (Mbps)

802.11a:

  • 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b:

  • 1, 2, 5.5, 11 Mbps

802.11g:

  • 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n:

  • 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac:

  • 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
