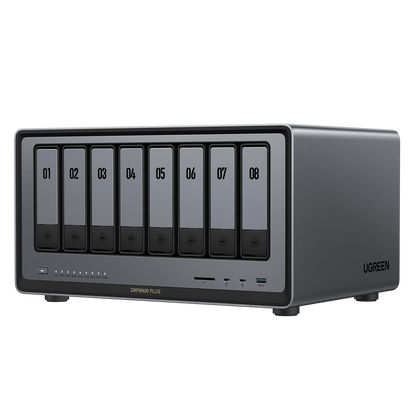

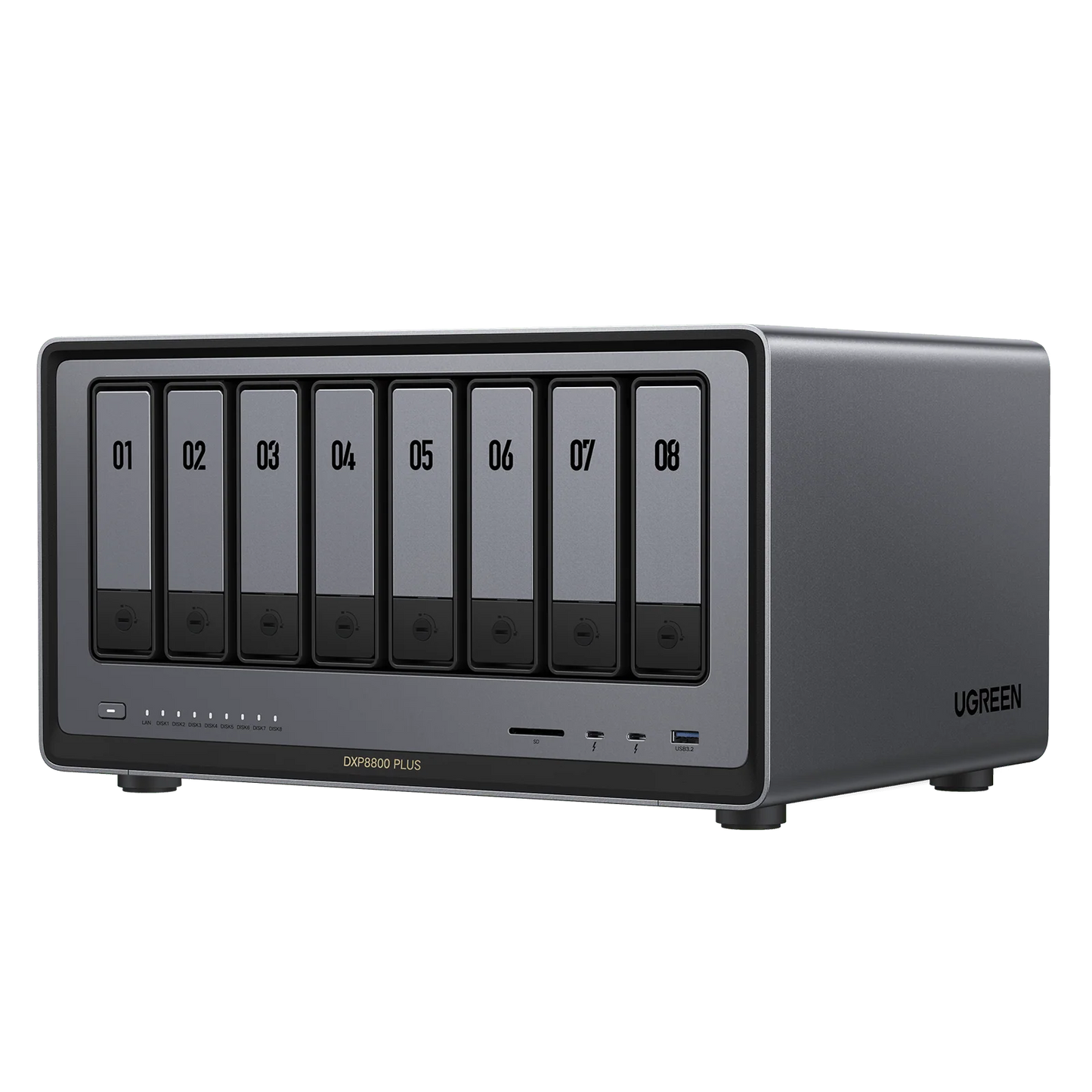

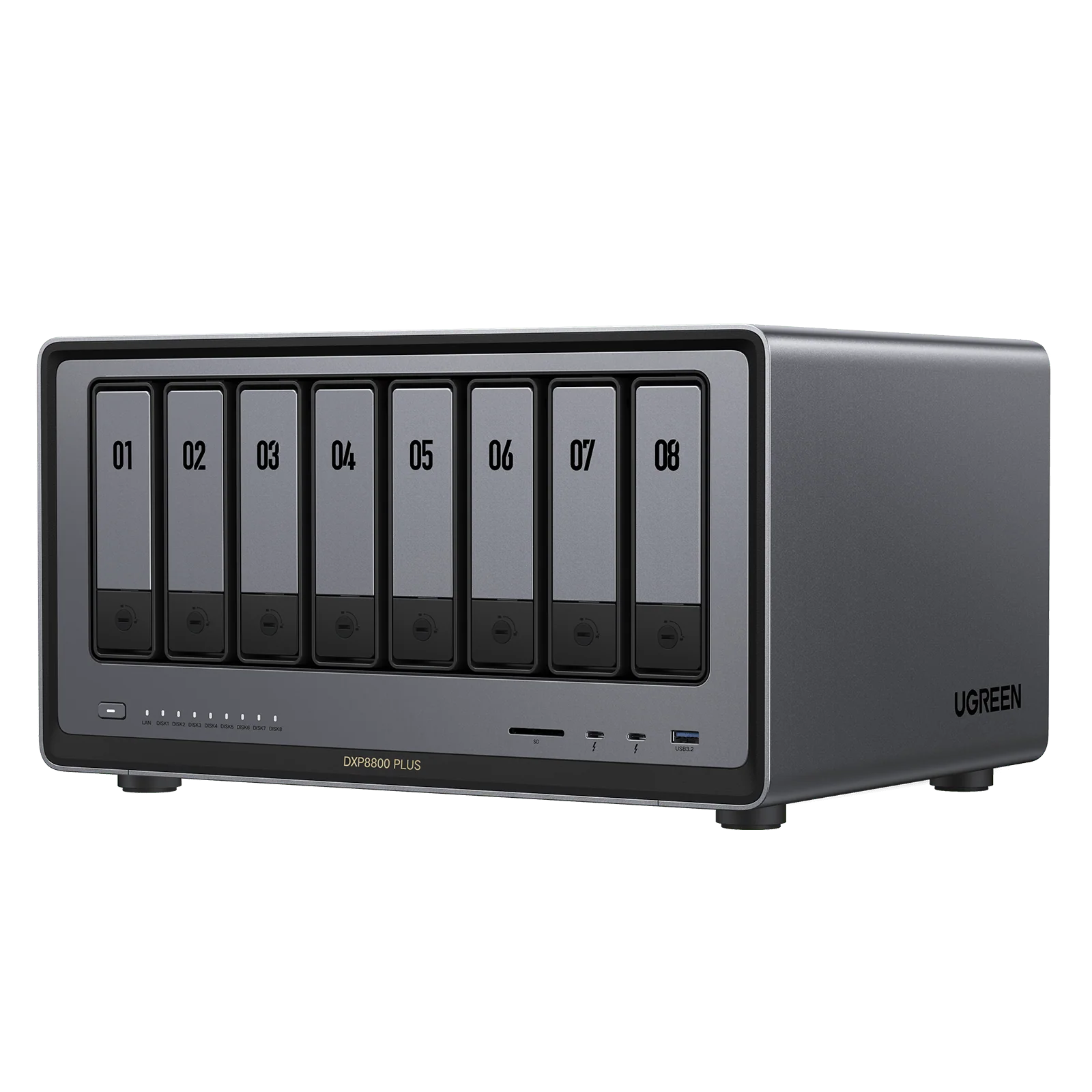

UGREEN NASync DXP8800 Plus | 8 - Bay NAS

Supports 3rd-Party Drives: UGREEN NASync is widely compatible with third-party hard drives, including those from Western Digital, Seagate, Toshiba, and more. Please check our compatibility list for full details.

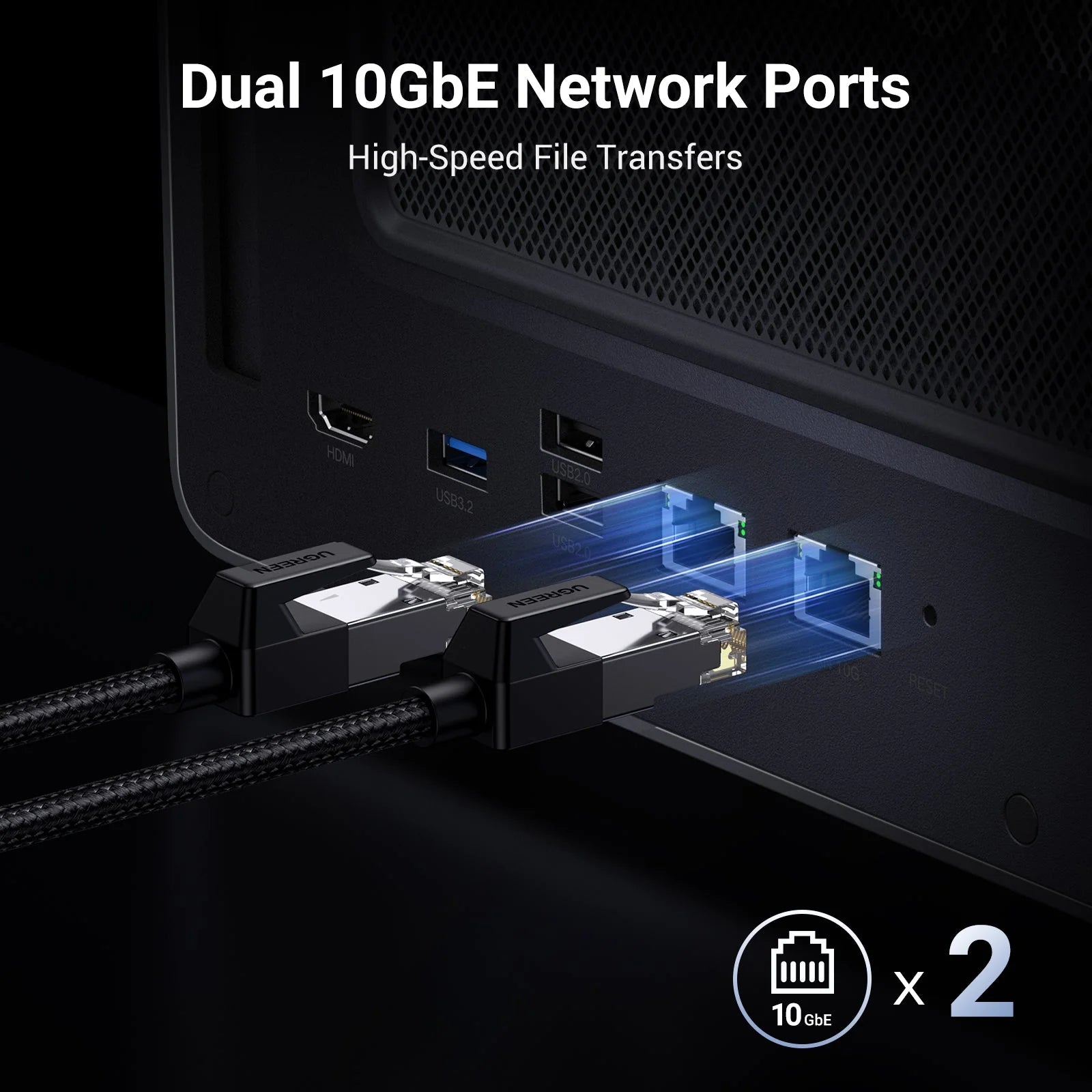

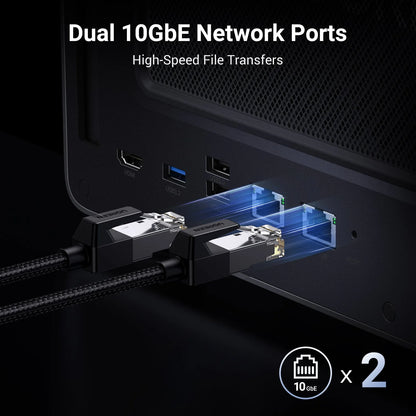

Dual 10GbE Network Ports: Two 10GbE high-speed network ports that can be aggregated into 20G bandwidth for download speeds of up to 2500MB/s.

12th Gen 10-core Intel® Core™ Processor: With a 12th Gen, 10-core 12-thread Intel® Core™ i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.

8-Bay, 256TB Massive Data Storage: Equipped with eight SATA and two M.2 NVMe drive bays, the NASync DXP8800 Plus has a maximum storage capacity of up to 256TB. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels. Store thousands of HD movies, pictures, and documents, Making NASync a movie library, photo album, and file storage space all in one.

One, All-Inclusive App: Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos and more, all from one convenient location.

Expandable 8GB DDR5 Memory: 8GB DDR5 4800MHz provide the latest in processing speeds and improved software and system performance.

AI Photo Album: Automatically organizes your photos by recognizing faces, scenes, objects, and locations. It can also instantly remove duplicates, freeing up storage space and saving you time. Explore the very latest AI Album features on the AI NAS page.

Model

DXP8800 Plus

Supported Languages

English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語

Drive Bays

8-Bay (SATA)

Operating System

UGOS Pro

CPU Model

1235u

CPU Brand & Architecture

Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads

Memory (RAM)

8GB DDR5

ODECC

Supported

Expandable RAM (Max)

64GB

Flash Memory (System Disk)

SSD 128GB

SATA Drive Bays

8

M.2 SSD Drive Slots

2

RAID

JBOD/Basic/0/1/5/6/10

Maximum Storage

256TB (8x 30TB + 2x 8TB)

LAN Ports (RJ45)

2x 10GbE

PCIe Expansion

1x PCIe x4

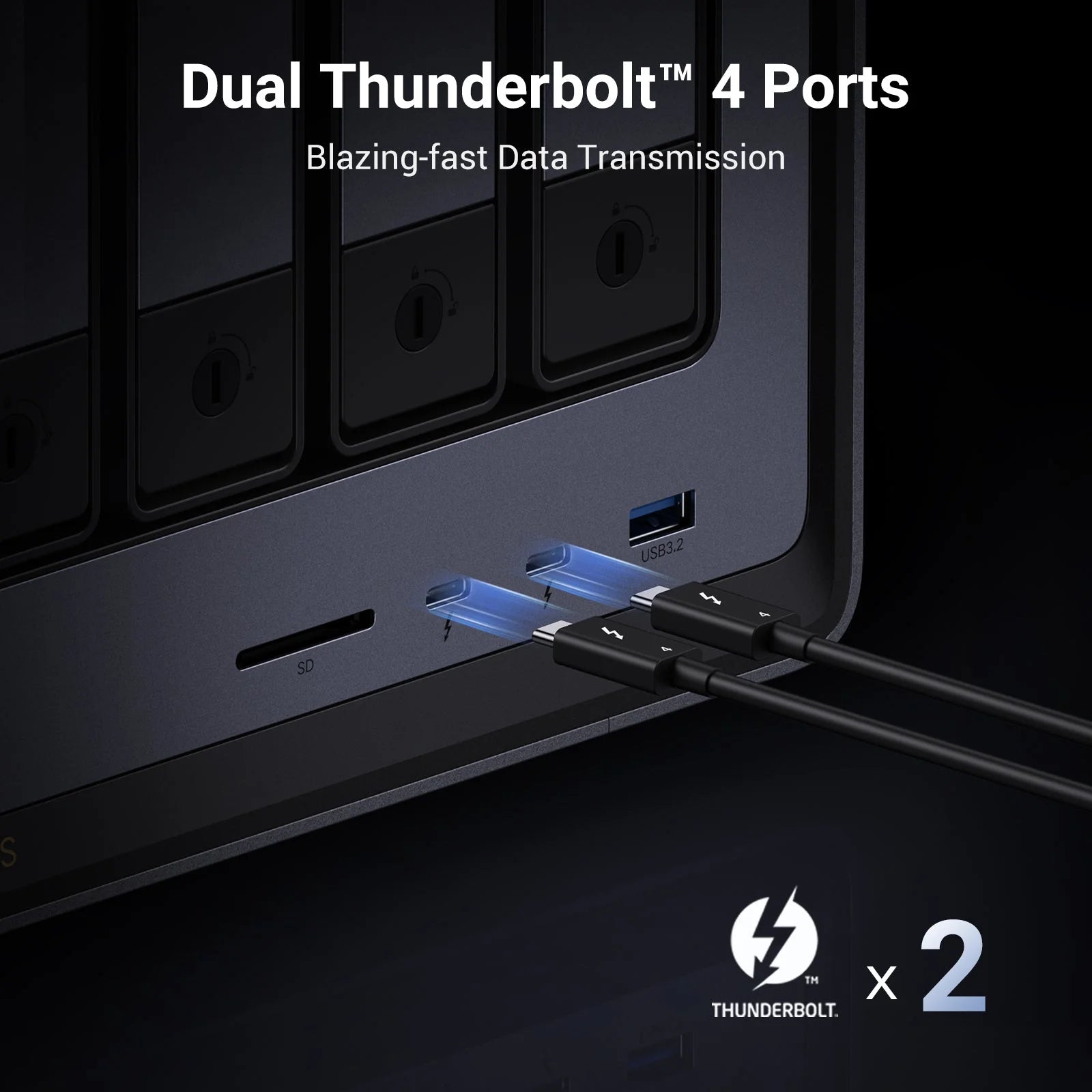

Thunderbolt™ 4 Ports

2

High-Speed USB Ports (Front Panel)

2x Thunderbolt 4 (40Gb/s)

High-Speed USB Ports (Rear Panel)

2x USB-A (10Gb/s)

USB 2.0 (Rear Panel)

2x USB-A (480Mb/s)

SD Card Reader

SD 4.0

HDMI

8K

Wi-Fi

-

Product Dimensions

L7.05×W5.59×H2.05 inches

Power Consumption

70.39 W (drive access)

28.99 W(drive hibernation)
