Bambu Lab
TPU Feed Assist Module
Available in stock (3023)
Couldn't load pickup availability
- TPU Printing, Not A Hassle Anymore
- Simplify Your TPU Feeding Path
1. This product provides core extruder components, main control board and various connectors, which need to be assembled by printing the TPU Feed Assist Module Housing and Frame by yourself.

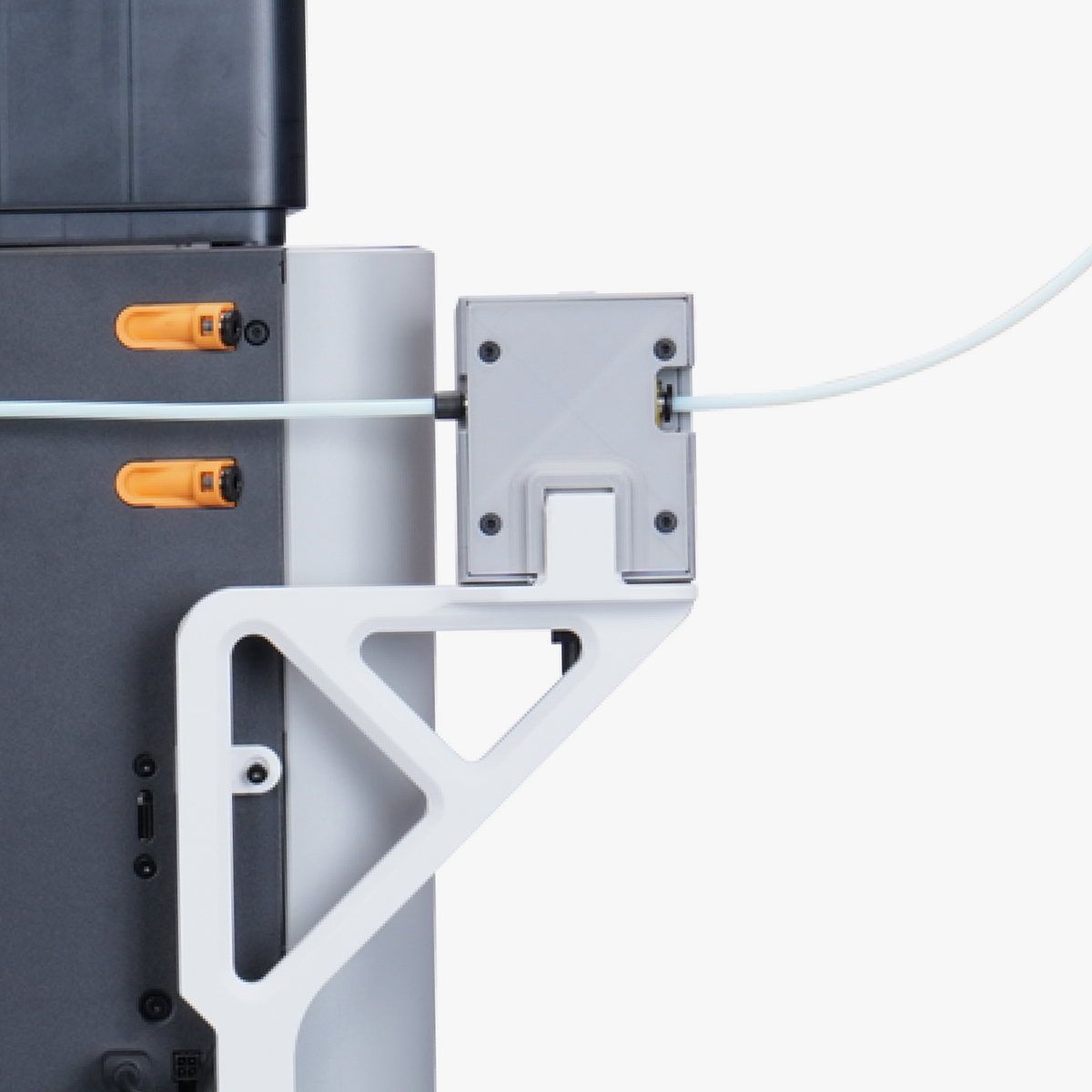

2. The TPU Feed Assist Module can be installed on either the left or right hotend:
- Installed on the right hotend: the left hotend can still be used normally, for example to print PLA supports for TPU.
- Installed on the left hotend: dual-hotend printing is not supported, as the left hotend's vertical movement may cause unstable TPU feeding and increase the risk of clogging.
3. Requires an external feeding system (e.g. AMS HT or a filament dryer with spool rotation). AMS auto loading/unloading is not supported. When using AMS HT, feed filament through the TPU outlet.
TPU Printing, Not A Hassle Anymore
Printing TPU has traditionally been a challenge due to the filament's inherent elasticity and high friction. To ensure a smooth extrusion, the feed path must be as short and direct as possible. The TPU Feed Assist Module eliminates the struggle by providing an active, consistent push to the filament. By stabilizing the feed and reducing drag, it delivers the reliability and precision required for professional-grade TPU results.

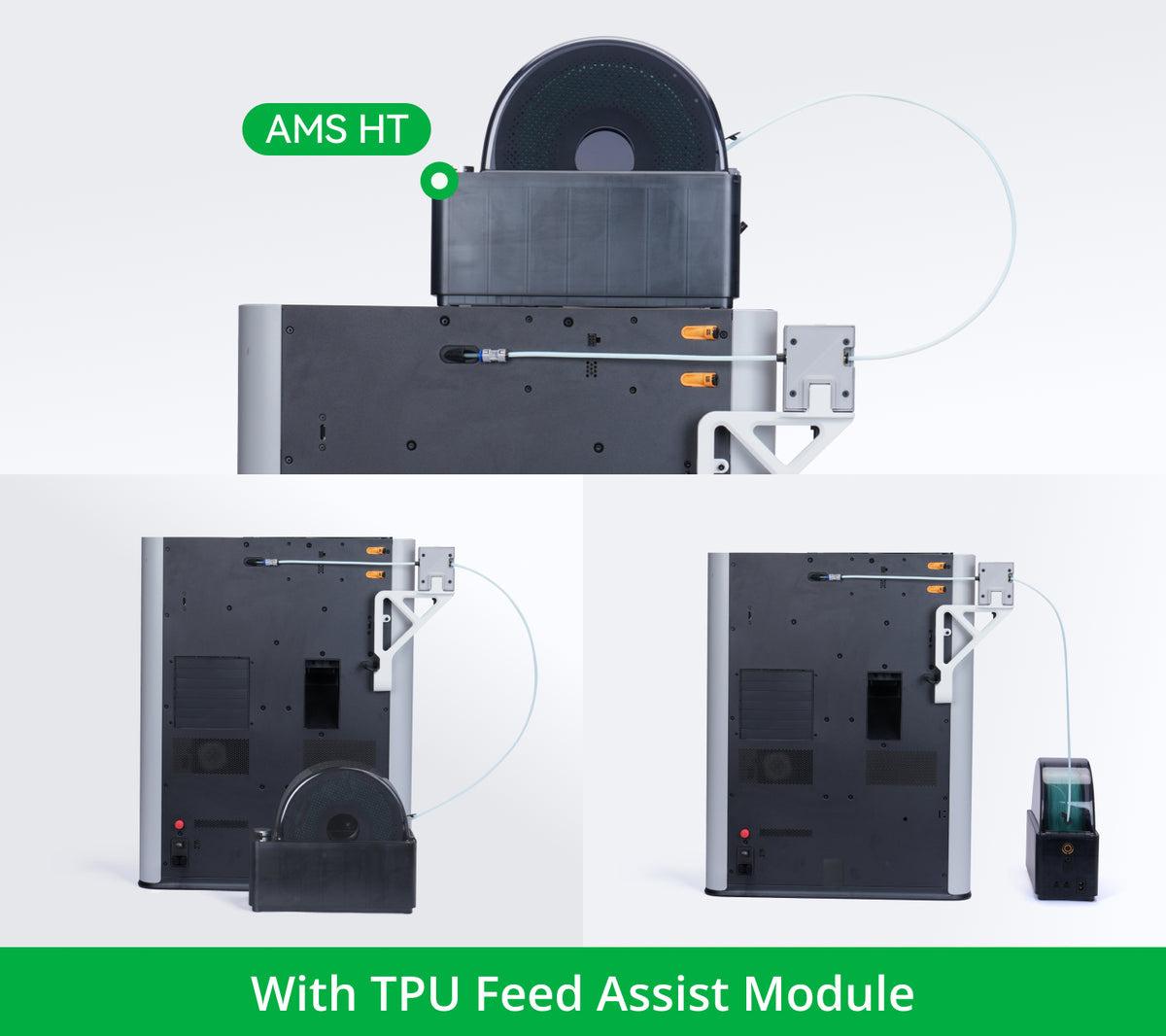

Simplify Your TPU Feeding Path
Forget the constraints of top-mounted spools or perfectly aligning your filament rack. The TPU Feed Assist Module gives you back your workspace. Now, you can keep your TPU in a side-mounted dry box or any convenient location without worrying about feed path friction. True freedom of placement, zero compromise on convenience.
Compatibility
Installation Guide
Please refer to the installation guide for the TPU Feed Assist Module available on Bambu Lab Wiki.

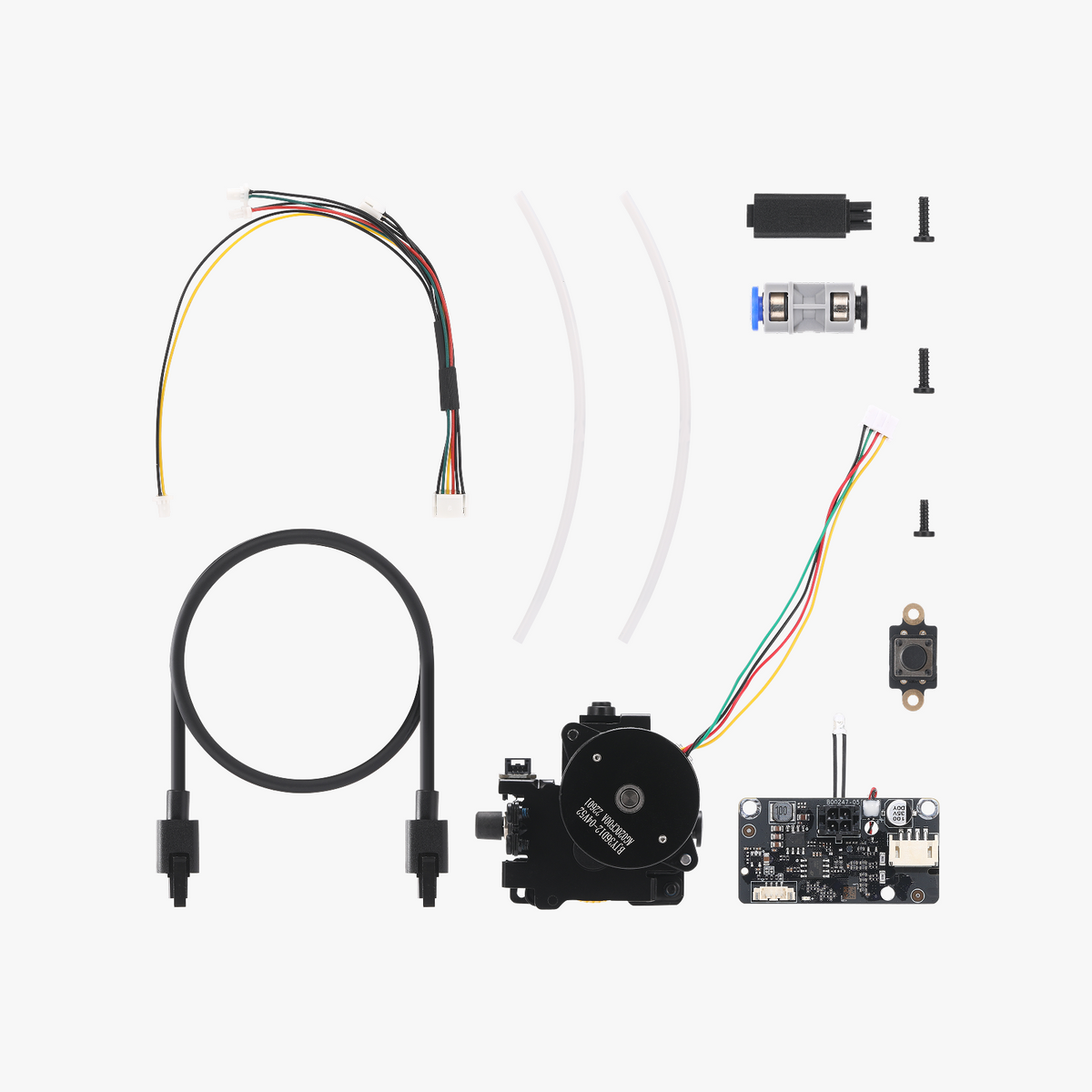

In the Box
| Item | Quantity |
|
Button Switch Plate
|
3 |
|
Extruder Components
|
1 |
|
PTFE Tube (160 mm)
|
1 |
|
PTFE Tube (275 mm)
|
1 |
|
Single PTFE Tube Pass Connector
|
1 |
|
4 PIN to 6 PIN Connector
|
1 |
|
Main Control Board
|
1 |
|
4 PIN Cable
|
1 |
|
1-to-4 Cable
|
1 |
|
BT2.6x8 Screws
|
14 |
|
BT3x10 & ST3x12 Screws
|
6 |
Product Specifications
| Materials | Plastic, Metal | Packaging Size | 105*150*133 mm |
| Color | Black | Packaging Weight | 46.9 g |
