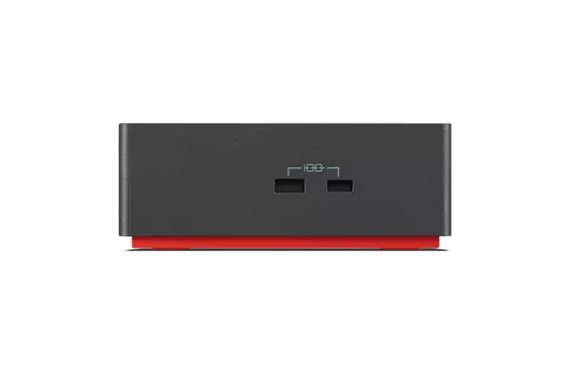

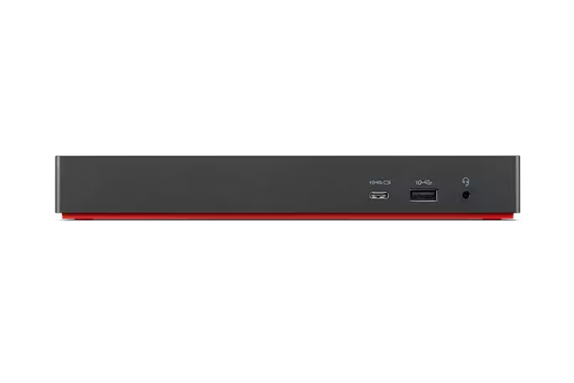

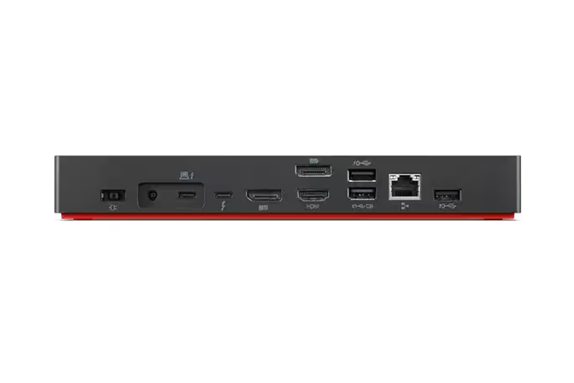

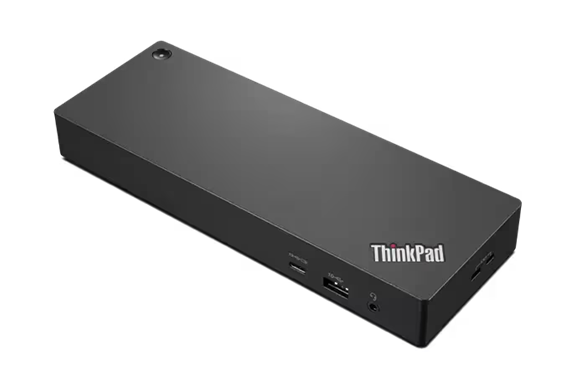

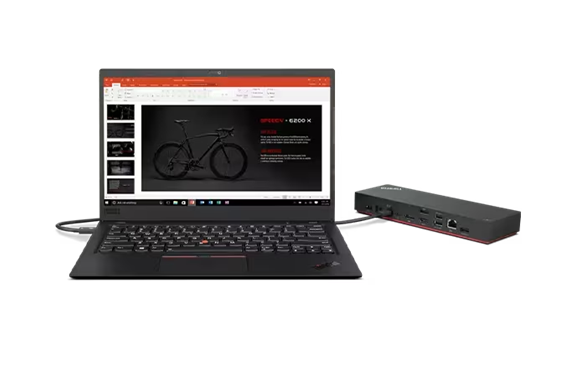

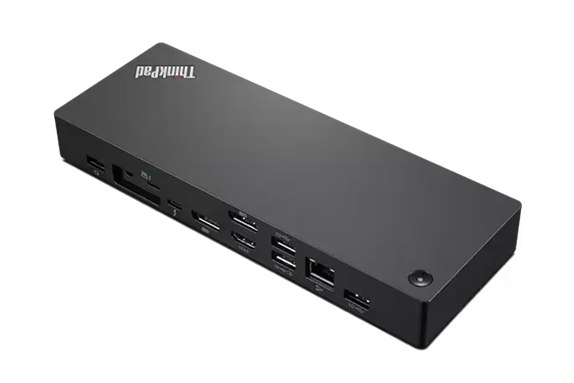

Lenovo ThinkPad Universal Thunderbolt 4 Docking Station - Black and Red
Lenovo ThinkPad Universal Thunderbolt 4 Docking Station - Black and Red
SKU:
SKU:035 - P/N: 40B00135US
25 in stock
Couldn't load pickup availability
Description
Description
Enterprise-Grade Universal Thunderbolt™ 4 Docking Experience. ThinkPad Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment:
Features
Features
One Cable. All Your Needs.
A single Thunderbolt™ cable is all you need to take your productivity to new heights. Adding an 8K @ 30 Hz display or up to four 4K @ 60 Hz displays, lightning-fast 40 Gbps transfer speeds, vPro® pass-through support, and enhanced dynamic power charging up to 100W. You can do it all with the ThinkPad® Universal Thunderbolt™ 4 Dock.
Compatibility. Made Limitless.
Freedom is the key to productivity. That’s why we’ve engineered the ThinkPad Thunderbolt™ 4 Dock to be limitlessly adaptable — supporting up to 100W PD and unrivaled performance on all Thunderbolt™ 3 and 4, USB 4, Windows 10 and above USB-C notebooks.
Remote Management. But Smarter.
Remote dock management just got a whole lot smarter. Thanks to Dock Manager and our latest hardware, firmware updates can be done without any end-user interruption, which means productivity is never compromised.
Tech Specifications
Tech Specifications
Color:
- Black/Red
Max Number of External Monitors:
- 4
Weight:
- 45Kg
Refresh Rate:
- 1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz
AC Plug:
- Slim Tip
Hardware Requirements:
- Host with USB-C/Thunderbolt port
Warranty Type:
- CRU
Output Power:
- Max 100W
Brand:
- ThinkPad
OS Requirements:
- Win10 64 bit, Win 11 64 bit
Packed Weight:
- 1.2Kg
Agency Approvals:
- cULus, FCC,ICES,NOM
Audio Ports:
- 1* 3.5mm Audio combo Jack
Charging Port:
- DC-IN
Thunderbolt Port:
- 1* Thunderbolt Port - for Host connect 1* Thunderbolt Port - for Device connect
USB Ports:
- 4 x USB 3.2 Gen 2 (1 always on), 1 x USB-C
Video Ports:
- 1* HDMI 2.1 2* DP 1.4
Ethernet:
- 1* Gigabit Ethernet
Package Type:
- brown box
Packed Dimensions (L x D x H):
- 270*195*85mm
Height:
- 30mm
Cable Length:
- 220mm
Depth:
- 80mm
Warranty Period:
- 3 years
Maximum Operating Temperature:
- 40 Celsius
Minimum Operating Temperature:
- 0 celsius
Maximum Relative Humidity (%):
- 95%
Minimum Relative Humidity (%):
- 5%
Driver Needed:
- Yes
Included Accessory:

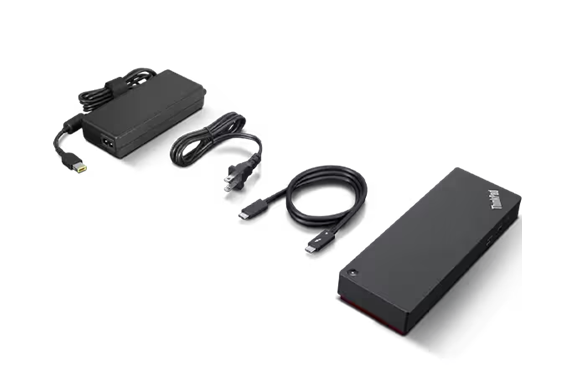

- 135W adapter, 1x power cord, standard Thunderbolt cable
Input Power:
- 20V 6.75A
Physical Security Feature:
- 1* NanoSaver lock slot 1*MicroSaver lock slot
Power Button:
- Yes
Power Delivery:
- Yes
Width:
- 220mm
