  • Specialized for 3D RC Planes Printing
  • Low Density and Light Weight
  • Tough with Good Impact Resistance
  • Matte Finish For Easy Coloring
  • Diameter: 1.75mm +/- 0.03mm



Cautions for Use

  • Recommended to dry out before use
  • All AMS Series Compatible

PLA Aero

· Specialized for printing 3D RC planes
· Relatively tough with good impact resistance
· Easy to paint with matte texture

Low Density and Light Weight

Bambu PLA Aero has almost the same filament density as regular PLA, while the prints density is only 50% to 80%.

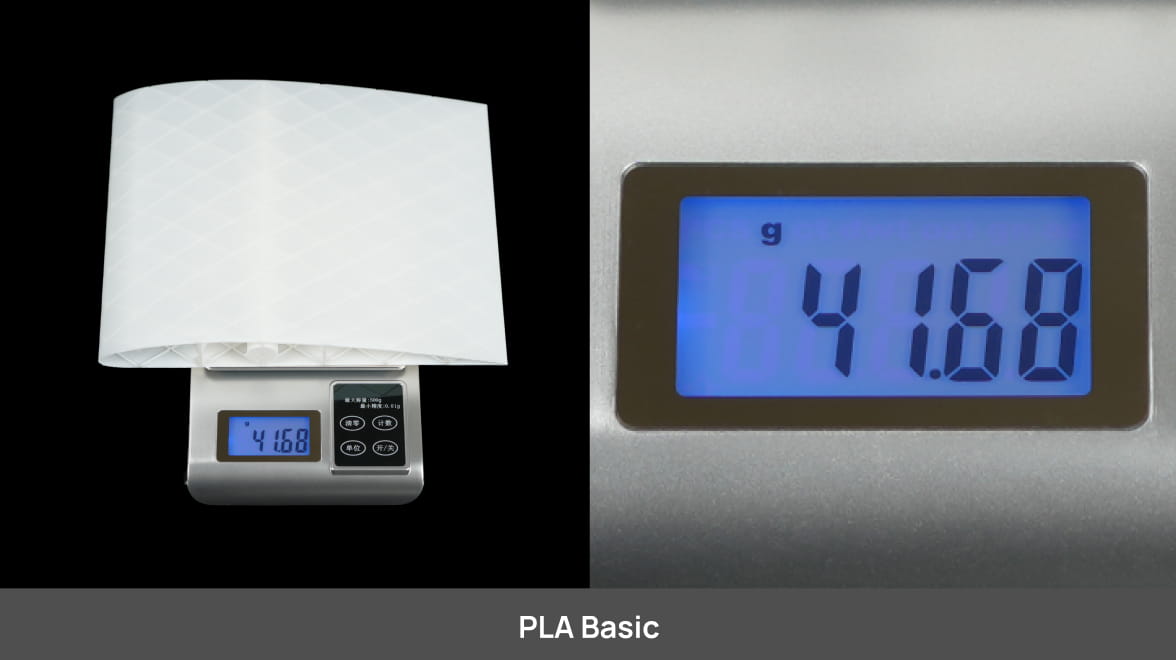

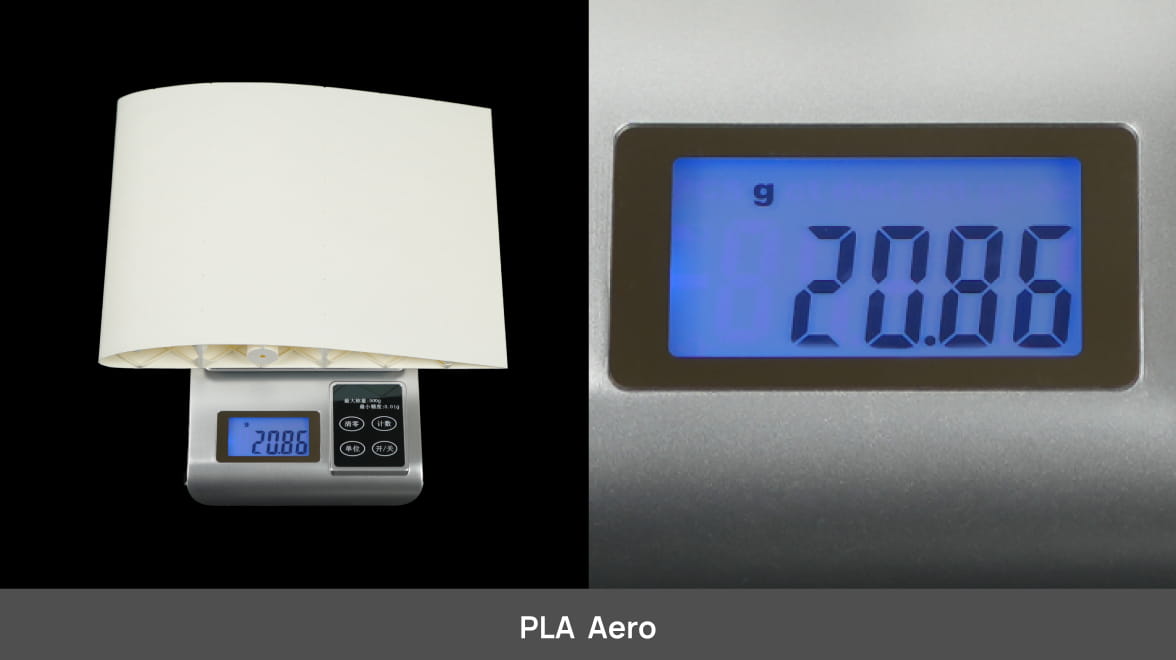

* When printing models of the same volume, PLA Aero is about half the weight of PLA Basic.

Controllable Model Density

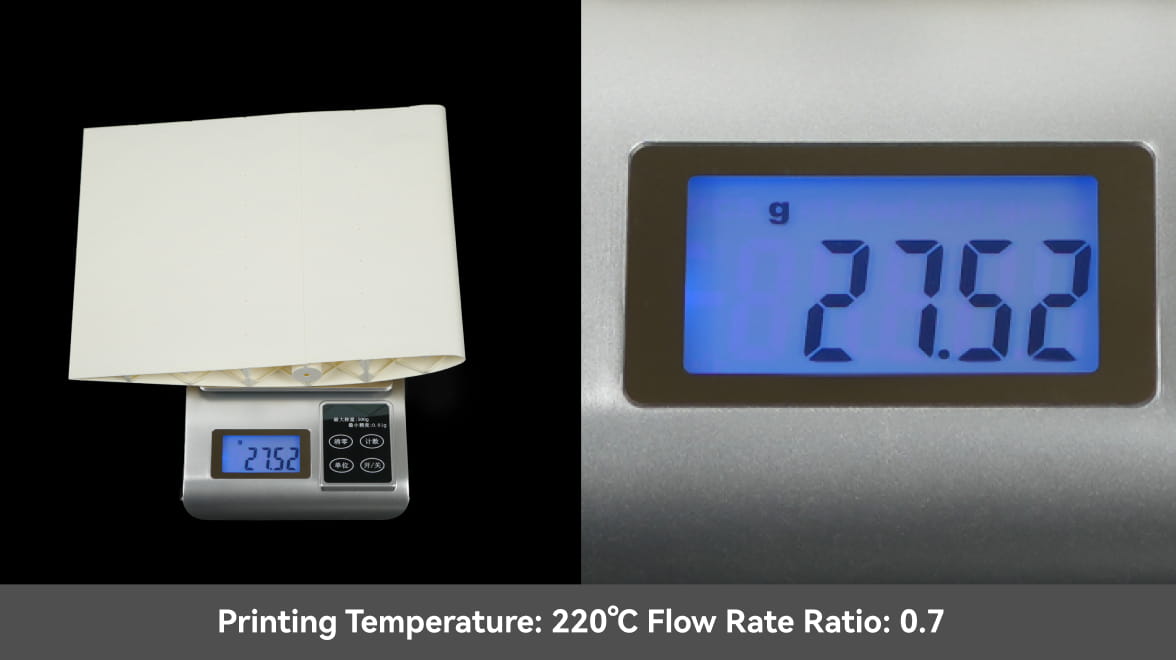

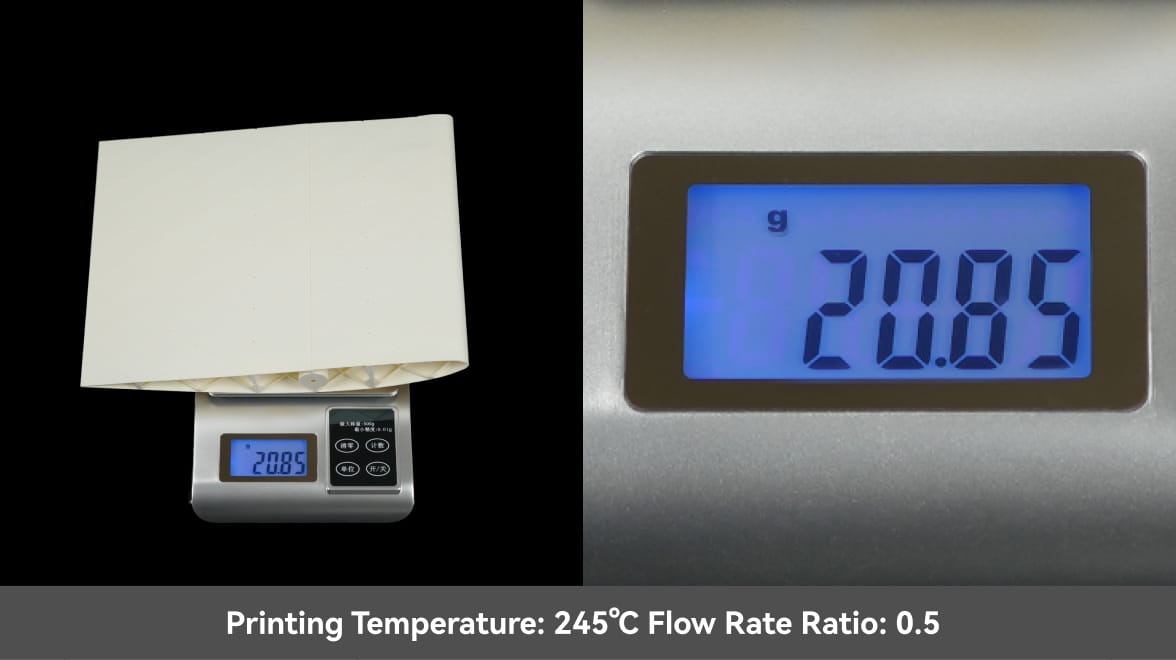

Achieve lower density of the prints by increasing printing temperature and lowering flow rate.

* The average density of prints will vary with changes in parameters such as actual printing temperature, flow rate ratio, printing speed, model size, wall thickness and infill density.

The relationship between the maximum foaming rate, minimum print density, and printing temperature of PLA Aero.

* Specimen Test: Nozzle Type: 0.4 mm; Printing Speed: 80 mm/s; Model size (L*W*H): 80*10*4 mm³ (the XY direction)
The actual required flow rate ratio and final model density may vary with different models.

Tough with Good Impact Resistance

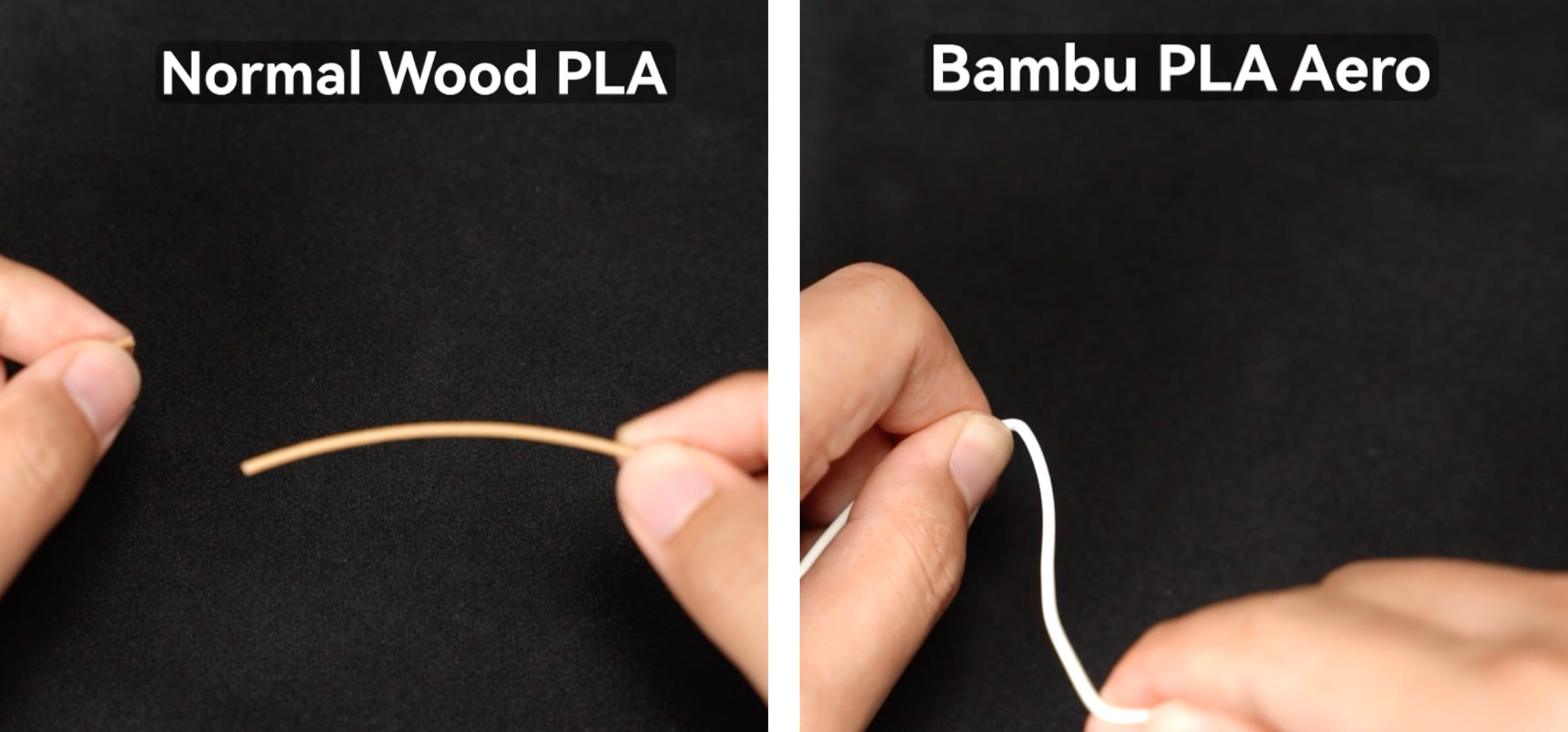

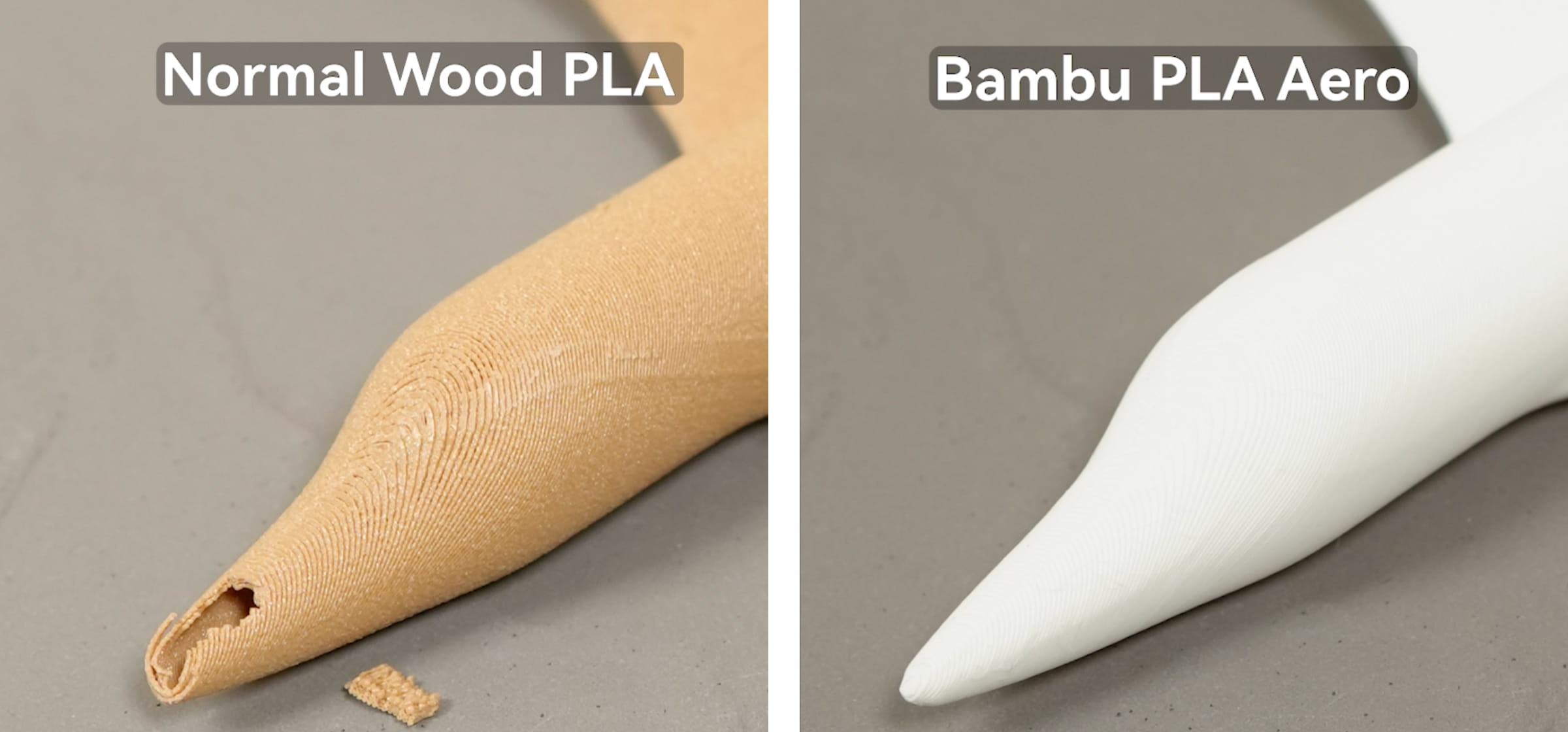

Compared to pre-foaming Wood PLA, Bambu PLA Aero and its prints are tougher and more resistant to impact, collision, and falling.

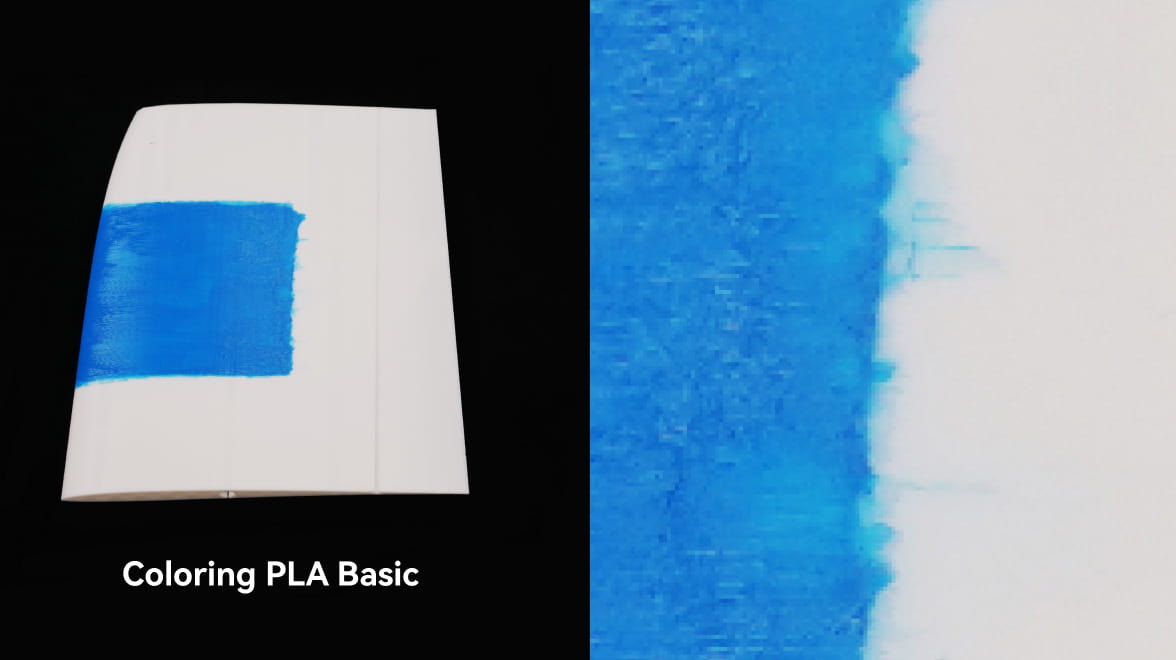

Matte Finish For Easy Coloring

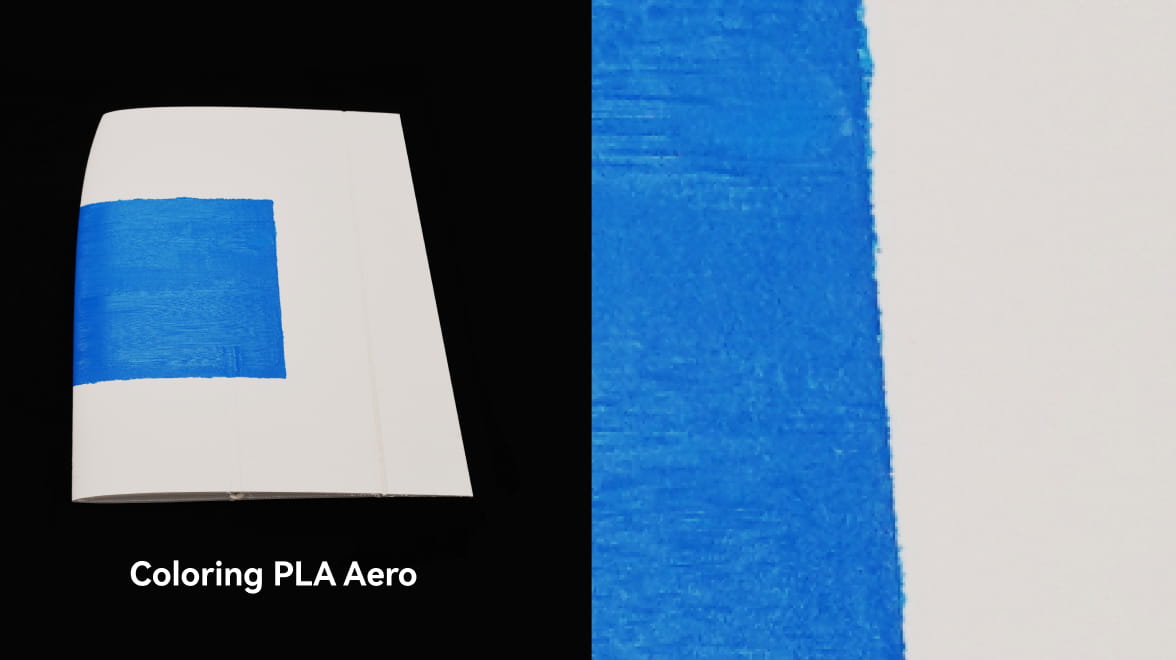

Bambu PLA Aero provides an easy-to-color matte surface texture with better dyeing results as compared to PLA Basic.

Parameters Comparison

RFID for Intelligent Printing

All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System).

Download

Printing Tips

1.Accessory Compatibility

Not compatible with Hotend with Hardened Steel Nozzle 0.6 mm / 0.8 mm, and Hotend with Stainless Steel Nozzle 0.2 mm.

2.Drying Recommendations

PLA Aero is highly sensitive to humidity. To achieve optimal printing performance, it is recommended further drying before use and after storage. For more details, please refer to the filament drying instructions on WIKI.

3.AMS Compatibility Warning

PLA Aero filament is relatively soft which may result in material loading and unloading failures during AMS printing.

4.Printing RC model

Foaming PLA materials (PLA Aero) have high requirements for material drying and parameter settings. Please carefully read the instructions for printing aircraft model with foaming PLA (PLA Aero) before starting the printing process.

5.Safety Tips

1. Please store the filament in a cool, dark, and dry environment away from direct sunlight and high temperatures.
2. Please keep filament and any broken fragments out of reach of infants, children, and pets to prevent swallowing or choking.
3. For opened filament, we recommend drying before use according to the wiki’s recommended temperature and time settings.
4. Please print this filament in a well-ventilated area, or install an effective air filtration or exhaust system.
5. As this filament is not food-grade, please avoid using finished prints for food storage or contact.
